Cable Lug T120 Tweco
SKU:
10024465

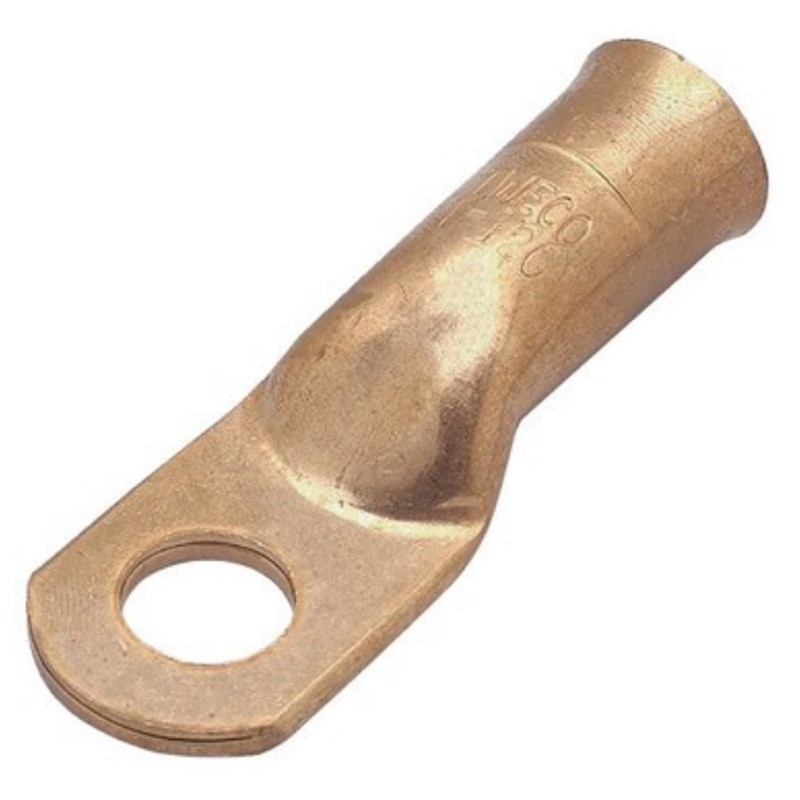

The Tweco T-120 TwecoLug 9520-1105 is a heavy-duty welding cable terminal connector designed for terminating #1 AWG to 2/0 AWG copper welding cable. Rated up to 225A, it features a high-conductivity construction, 17/32" stud hole and a cable barrel suitable for crimp or solder installation.
Features & Benefits
» Heavy-duty TwecoLug designed for terminating copper welding cables on welding equipment and associated connections
» Rated for currents up to 225A for professional welding applications
» Accommodates #1 AWG through 2/0 AWG welding cable, including commonly used 1/0 and 2/0 sizes
» High-conductivity metal construction supports efficient electrical current transfer
» 17/32" stud hole provides clearance for compatible 1/2" terminal studs
» 0.559" cable socket provides secure accommodation for compatible welding cable conductors
» Suitable for either mechanical crimping or solder installation
» Flared cable entry assists cable insertion and helps prevent fine copper strands from catching or splaying
» Heavy-wall construction provides durability for demanding welding environments
» Suitable for welding power sources, work leads, electrode leads and other high-current welding cable connections
Technical Specifications
» Brand: Tweco
» Product Range: TwecoLugs
» Model: T-120
» Manufacturer Part Number: 9520-1105
» Product Type: Welding Cable Terminal Lug
» Maximum Current Rating: 225A
» Compatible Cable Size: #1 AWG To 2/0 AWG
» Stud Hole Diameter: 17/32" (Approximately 13.5mm)
» Compatible Stud Size: 1/2"
» Cable Socket Internal Diameter: 0.559" (Approximately 14.2mm)
» Installation Method: Crimp Or Solder
» Cable Entry: Flared
» Approximate Length: 71mm
» Approximate Width: 25.4mm
» Approximate Height: 20.3mm
» Approximate Weight: 0.12kg
» Application: Welding Cable Termination And High-Current Welding Connections
