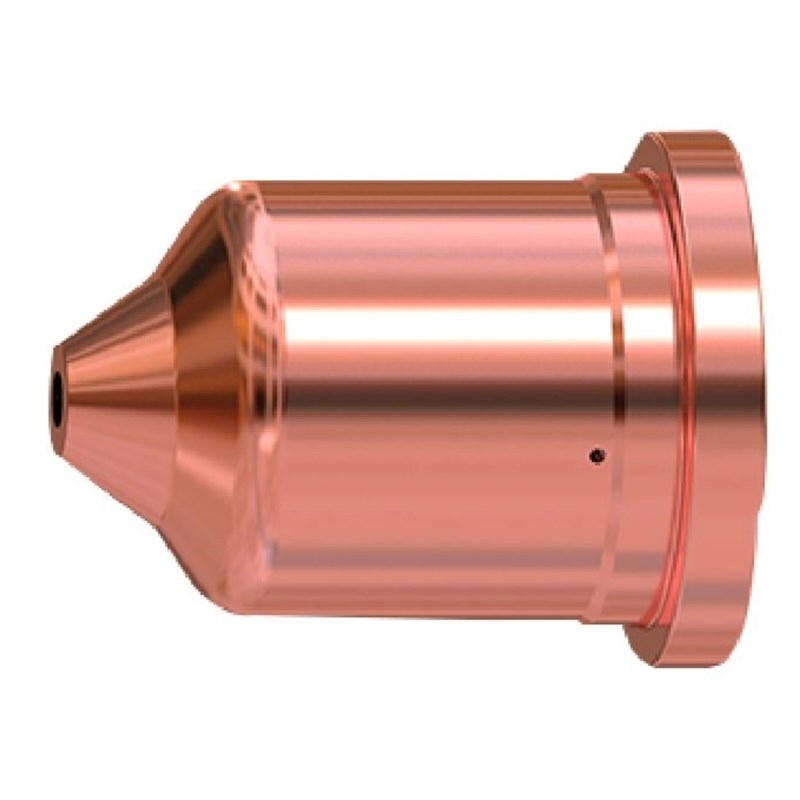

Plasma Nozzle 220941 Duramax 45A
SKU:
10069931
The Hypertherm 220941 45 Amp Plasma Cutting Nozzle is a genuine torch consumable designed for precision cutting with compatible Duramax and Duramax Lock plasma torches. Operating from 15A to 45A, its precision-machined copper alloy construction concentrates the plasma arc for accurate handheld drag-cutting and mechanised cutting applications.
Features & Benefits
» Genuine Hypertherm consumable engineered for standard 45A plasma cutting applications
» Precision nozzle geometry constricts and accelerates the plasma gas to produce a concentrated cutting arc
» Suitable for operating currents from 15A to 45A
» Supports handheld drag-cutting and automated mechanised cutting applications
» Compatible with Duramax, Duramax Lock and suitable Duramax retrofit torch configurations
» High-thermal-conductivity copper alloy construction withstands demanding plasma cutting conditions
» Designed primarily for the Powermax45 XP and compatible with Powermax65, Powermax85 and Powermax105 systems operating at suitable amperages
» Supports recommended production cutting of mild steel, stainless steel and aluminium up to 12mm under specified conditions
» Suitable for CNC plasma cutting when paired with the appropriate machine shield and retaining cap
» Designed for use with clean, dry and oil-free compressed air or nitrogen
Technical Specifications
» Brand: Hypertherm
» Manufacturer Part Number: 220941
» Product Type: Plasma Cutting Nozzle
» Rated Current: 45A
» Operating Current Range: 15A To 45A
» Material: Copper Alloy
» Orifice Profile: Precision Cylindrical Bore
» Compatible Torch Families: Duramax, Duramax Lock And Duramax Retrofit
» Compatible Systems: Powermax45 XP, Powermax65, Powermax85 And Powermax105
» Cutting Processes: Drag Cutting And Mechanised Cutting
» Recommended Cut Capacity: Up To 12mm
» Compatible Gas: Clean, Dry, Oil-Free Air Or Nitrogen
» Compatible Electrode: 220842
» Compatible CopperPlus Electrode: 220777
» Compatible Swirl Ring: 220857
» Compatible Retaining Cap: 220854
» Compatible Handheld Drag Shield: 220818
» Compatible Machine Shield: 220817
» Compatible Ohmic Retaining Cap: 220953
» Weight: Approximately 13g
