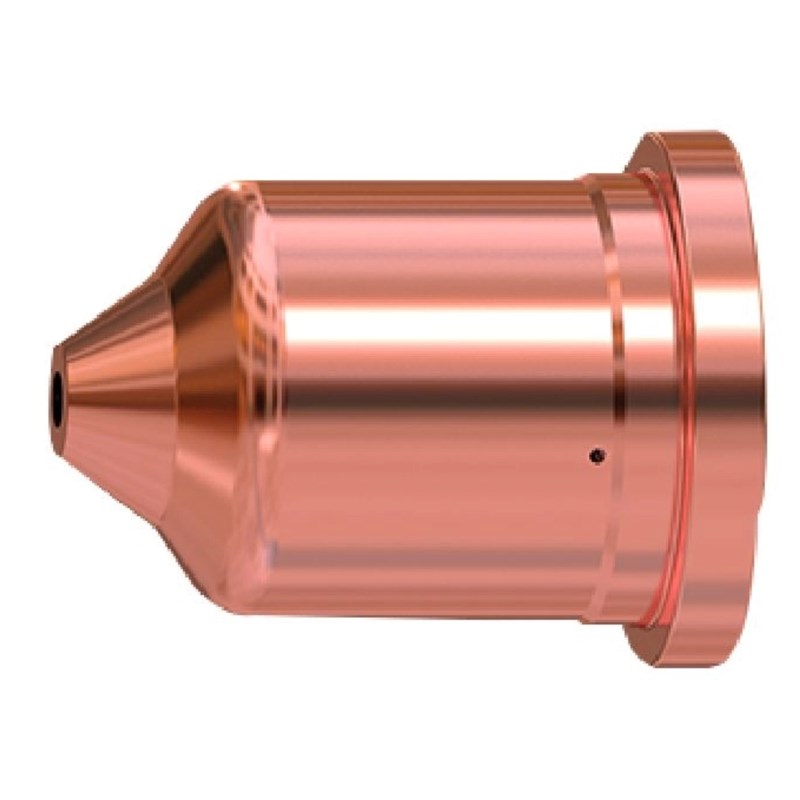

Plasma Nozzle 220990 Powermax105 Hypertherm
SKU:
10070156
The Hypertherm 220990 105 Amp Plasma Nozzle is a genuine plasma torch consumable designed for high-performance cutting with compatible Duramax torch systems. Operating from 85A to 105A, its precision-engineered copper-zirconium construction concentrates the plasma arc for fast, accurate handheld and mechanised metal cutting.
Features & Benefits
» Genuine Hypertherm consumable engineered for high-performance 105A plasma cutting
» Precision nozzle geometry constricts and accelerates the plasma gas to produce a concentrated cutting arc
» Suitable for operating currents from 85A to 105A
» Supports handheld drag-cutting and mechanised CNC cutting applications
» Compatible with Duramax HRT and HRTs handheld torches and MRT machine torches
» Copper-zirconium alloy construction provides excellent thermal and electrical performance
» 1.4mm precision orifice helps maintain a focused plasma arc and controlled kerf
» Designed primarily for use with the Hypertherm Powermax105 plasma cutting system
» Supports production cutting of mild steel up to 32mm under specified operating conditions
» Supports mild steel severance cutting up to 50mm and mechanised piercing up to 22mm under suitable conditions
Technical Specifications
» Brand: Hypertherm
» Manufacturer Part Number: 220990
» Product Type: Plasma Cutting Nozzle
» Rated Current: 105A
» Operating Current Range: 85A To 105A
» Material: Copper-Zirconium Alloy
» Orifice Diameter: 1.4mm
» Initial Kerf Width: 1.8mm ±0.1mm
» Compatible Torch Family: Duramax
» Compatible Hand Torches: HRT And HRTs
» Compatible Machine Torch: MRT
» Compatible System: Powermax105
» Cutting Processes: Drag Cutting And Mechanised Cutting
» Recommended Mild Steel Cut Capacity: 32mm
» Maximum Mild Steel Severance Capacity: 50mm
» Maximum Mechanised Piercing Capacity: 22mm
» Recommended Gas Pressure: 5.9bar
» Recommended Gas Flow: 217L/min
