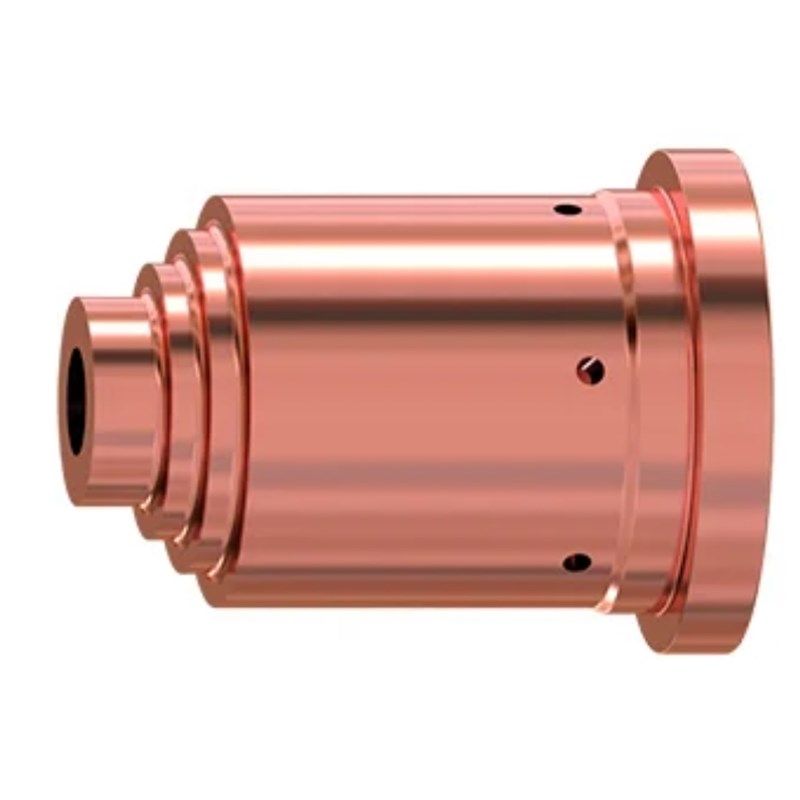

Plasma Gouging Nozzle 220991 Powermax105
SKU:
10070157
The Hypertherm 220991 Gouging Nozzle is a genuine plasma torch consumable designed for high-amperage gouging with compatible Duramax torch systems. Operating from 85A to 105A, it produces a wide, soft plasma arc optimised for rapid metal removal, weld removal and surface metal washing.
Features & Benefits
» Genuine Hypertherm consumable designed for high-performance plasma gouging applications
» Optimised for operation between 85A and 105A
» Specialised nozzle geometry creates a wide, soft plasma arc for efficient material removal
» Max removal profile is ideal for rapidly removing large quantities of metal
» Suitable for weld removal, defect excavation, surface preparation and metal washing
» Designed for use with compatible Duramax handheld, machine and robotic torch configurations
» Premium copper construction provides excellent thermal and electrical conductivity
» Delivers a typical metal removal rate of up to 9.8kg/hr when operated at 105A under specified conditions
» Produces a typical gouge profile of approximately 6.4mm deep by 7.4mm wide at 105A
» Designed to operate with a clean, dry and oil-free compressed air or nitrogen supply
Technical Specifications
» Brand: Hypertherm
» Manufacturer Part Number: 220991
» Product Type: Plasma Gouging Nozzle
» Process: Max Removal Gouging
» Current Range: 85A To 105A
» Material: Copper
» Arc Profile: Wide And Soft
» Compatible Torch Family: Duramax
» Torch Configurations: Handheld, Machine And Robotic
» Compatible Systems: Powermax65, Powermax85 And Powermax105
» Metal Removal Rate At 105A: 9.8kg/hr
» Typical Gouge Depth At 105A: 6.4mm
» Typical Gouge Width At 105A: 7.4mm
» Recommended Gas Flow: 227L/min
» Recommended Gas Pressure: 4.8bar
» Gas Supply: Clean, Dry, Oil-Free Air Or Nitrogen
