Electrode Hilco Basic 55 7016 2.5mm x 350mm 3.9Kg
SKU:
10111179

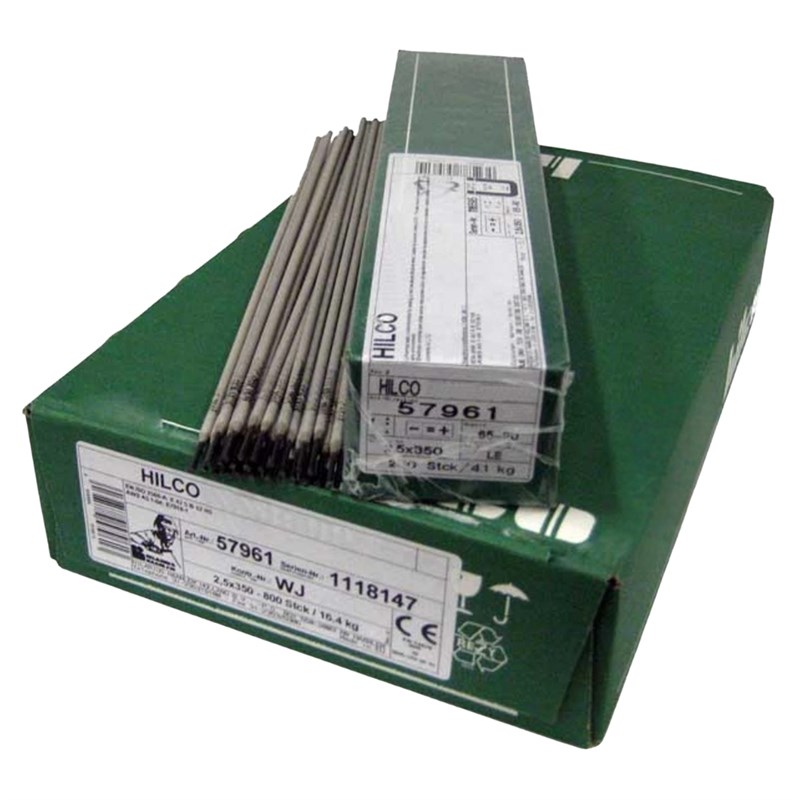

The Weldgas WER3508 Hilco Basic 55 2.5mm MMA Welding Electrodes are double-coated basic-rutile electrodes designed to combine low-hydrogen weld metal with stable arc characteristics and straightforward handling. Supplied as 2.5mm x 350mm electrodes in a 3.9kg box, they are particularly suited to root runs, structural steelwork, pipe welding and general fabrication.
Features & Benefits
» Double-coated basic-rutile MMA electrode combining the mechanical properties of a basic electrode with smooth welding characteristics
» Low-hydrogen weld deposit with an H10 classification for controlled diffusible hydrogen levels
» Stable arc characteristics provide good control for root runs and precision welding applications
» 2.5mm diameter provides effective weld pool control when working on thinner sections, root passes and detailed fabrication
» Suitable for AC and DC welding power sources for flexibility across workshop and site equipment
» Suitable for all standard welding positions except vertical down
» Easy ignition and good slag detachability support efficient welding and cleaning between passes
» Mechanical properties provide a minimum yield strength above 420MPa and tensile strength of 500–640MPa
» Impact toughness suitable for applications requiring performance at temperatures down to -30°C
» Suitable for unalloyed structural steels and compatible boiler and pressure vessel steels
» Ideal for root runs, pipework, structural fabrication, shipbuilding, pressure vessels and storage tanks
Technical Specifications
» Brand: Hilco
» Distributor: Weldgas
» Product Range: Basic 55
» Product Code: WER3508
» Product Type: MMA Welding Electrode
» Coating Type: Double-Coated Basic-Rutile
» Electrode Diameter: 2.5mm
» Electrode Length: 350mm
» Box Weight: 3.9kg
» AWS Classification: AWS A5.1 E7016
» EN ISO Classification: EN ISO 2560-A E 38 3 B 12 H10
» Diffusible Hydrogen Classification: H10
» Recommended Current Range: 60–90A
» Current Type: AC / DC
» Welding Positions: All Positions Except Vertical Down
» Yield Strength: >420MPa
» Tensile Strength: 500–640MPa
» Elongation: >22%
» Impact Toughness Temperature: Down To -30°C
» Application: Root Runs, Pipe Welding, Structural Steelwork, Shipbuilding, Pressure Vessels And General Fabrication
