Plasma Gouging Nozzle 420419 Powermax45XP Each
SKU:
10093020

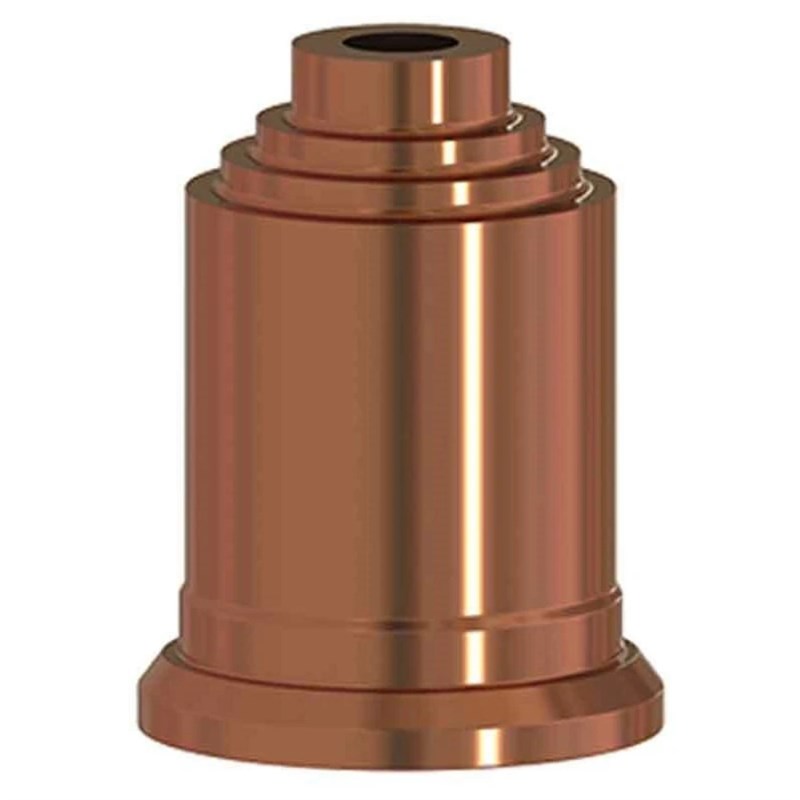

The Hypertherm 420419 Max Control Gouging Nozzle is a genuine plasma torch consumable designed for precise, controlled metal removal with compatible Duramax torch systems. Operating from 25A to 45A, it produces a focused gouging arc ideal for spot weld removal, shallow gouging and light surface metal washing.
Features & Benefits
» Genuine Hypertherm consumable engineered specifically for Max Control plasma gouging
» Designed for precise metal removal where greater control over gouge depth and profile is required
» 25A to 45A operating range supports light and controlled gouging applications
» Focused arc profile helps target specific areas while minimising unnecessary removal of surrounding base material
» Ideal for spot weld removal, defect excavation, shallow gouging and light surface washing
» Optimised for the Powermax45 XP and compatible Duramax Lock torch configurations
» Compatible with suitable standard Duramax and Duramax retrofit torch systems
» Precision copper nozzle geometry provides controlled plasma flow for accurate material removal
» Delivers a metal removal rate of approximately 3.4kg/hr at 45A under specified operating conditions
» Produces a typical shallow gouge profile of approximately 3.2mm deep by 6.8mm wide at 45A
Technical Specifications
» Brand: Hypertherm
» Manufacturer Part Number: 420419
» Product Type: Plasma Gouging Nozzle
» Process: Max Control Gouging
» Current Range: 25A To 45A
» Material: Copper
» Compatible Torch Families: Duramax Lock And Duramax
» Primary Compatible System: Powermax45 XP
» Metal Removal Rate At 45A: 3.4kg/hr
» Typical Gouge Depth At 45A: 3.2mm
» Typical Gouge Width At 45A: 6.8mm
» Compatible Electrode: 420120
» Compatible Swirl Ring: 420211
» Compatible Retaining Cap: 420148
» Compatible Max Control Shield: 420480
