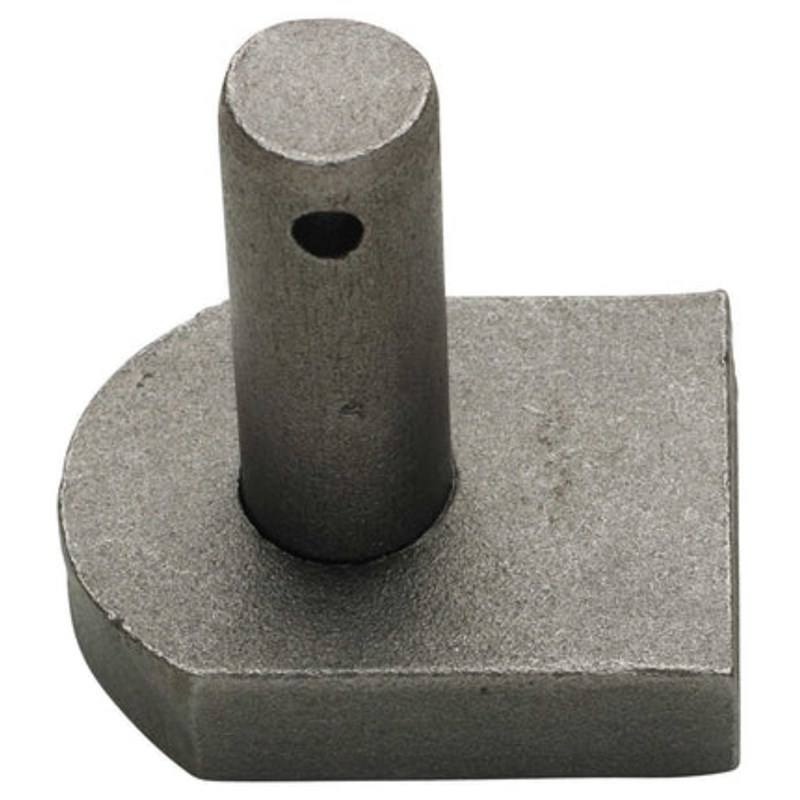

Gate Hook To Weld 19mm SC No 154S
SKU:
10044285
The A. Perry No. 154S Gate Hook to Weld 19mm is a heavy-duty forged steel gate hinge pin designed for permanent welded installation on steel gate posts and structural frames. Manufactured in self-colour steel, it provides a strong, secure pivot point for agricultural, commercial and industrial gates.
Features & Benefits
» Heavy-duty gate hook designed for permanent welded installation on steel structures
» Manufactured from robust forged structural steel for exceptional strength and durability
» Self-colour finish allows clean, contamination-free welding without removing protective coatings
» Flat square mounting base provides excellent contact for strong fillet welds on steel posts and box sections
» Creates a permanent tamper-resistant gate hinge once welded into position
» Compatible with standard 19mm gate eyes, hinge bands and strap hinges
» Ideal for agricultural gates, security gates, industrial entrances and bespoke steel fabrications
» Suitable for MIG, MMA (Stick) and TIG welding applications
Technical Specifications
» Brand: A. Perry (Perry Trade)
» Model: No. 154S (Straight End Base Series)
» Manufacturer Part Numbers: 154S0019SC / 154SXPP0019SC
» Product Type: Gate Hook to Weld
» Hook / Pin Diameter: 19mm (Approx. 3/4")
» Material: Heavy-Gauge Forged Structural Steel
» Finish: Self Colour (Untreated Raw Steel)
» Mounting Style: Weld-On Flat Base
» Approximate Dimensions: 80mm Height x 60mm Length
» Installation Method: MIG, MMA (Stick) or TIG Welding
» Compatible Hardware: 19mm Adjustable Gate Eyes, Hinge Bands and Strap Hinges
» Suitable Applications: Agricultural Gates, Security Gates, Industrial Gates and Steel Fabrication Projects
» Post-Installation: Prime and Paint or Apply Suitable Corrosion Protection After Welding
