Plug Dinze Type 35-50 5110315 Binzel
SKU:
10024358

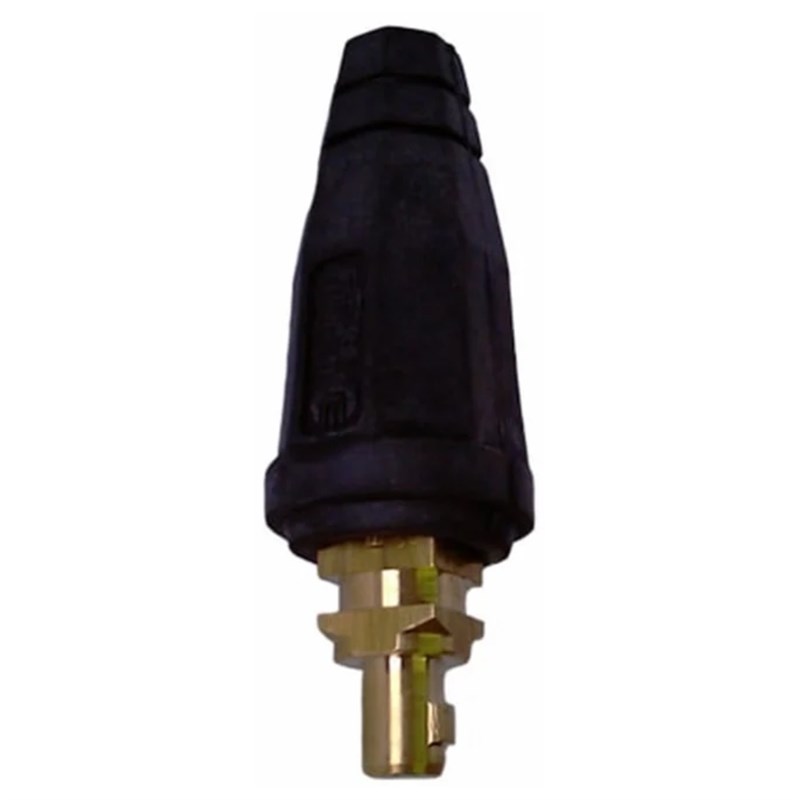

The Abicor Binzel ABI-PLUG 35-50 Male Welding Cable Plug is a heavy-duty quick-connect coupling designed for secure and efficient connection of 35mm² to 50mm² welding cables. Featuring a 12.8mm Dinse-style male pin and robust brass construction, it provides reliable current transfer for demanding arc welding applications. The push-and-twist locking mechanism, secure internal cable clamping system and insulated rubber housing provide excellent mechanical strength, electrical protection and straightforward connection to compatible welding equipment.
Features & Benefits
» Heavy-duty Abicor Binzel ABI-PLUG connector designed for professional arc welding applications
» Suitable for welding cables with cross-sectional areas from 35mm² to 50mm²
» 12.8mm Dinse-style male pin provides compatibility with matching large-pin welding sockets
» Push-and-twist connection provides quick and secure attachment to compatible welding equipment
» Precision brass construction promotes efficient electrical current transfer with minimal resistance
» Square end-block design provides excellent resistance against twisting and cable pull-out forces
» Internal grub screw assembly securely clamps the welding cable within the connector
» Moulded insulating rubber housing provides electrical, moisture and short-circuit protection
» Rated at approximately 315A for demanding professional welding applications
» Suitable for compatible welding machines, panel sockets and welding cable extension connections
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Male Welding Cable Plug
» Series: ABI-PLUG
» Connector Size: 35-50
» Part Number: 511.0315
» Connection Type: Dinse-Style Male Quick Connector
» Connection Method: Push And Twist
» Cable Cross-Section Capacity: 35mm² To 50mm²
» Approximate Amperage Rating: 315A
» Male Pin Diameter: 12.8mm
» Pin Length To Shoulder: 20mm
» Brass Lug Length: 55mm
» Copper Sleeve Bore Diameter: 11.5mm
» Assembled Length: Approximately 132mm
» Cable Retention: Internal Grub Screw
» Housing Material: Insulating Rubber
» Connector Material: Brass
» Standard: EN 60974-12
