Plug Dinze Type 50-70 5110331 Binzel
SKU:
10024359

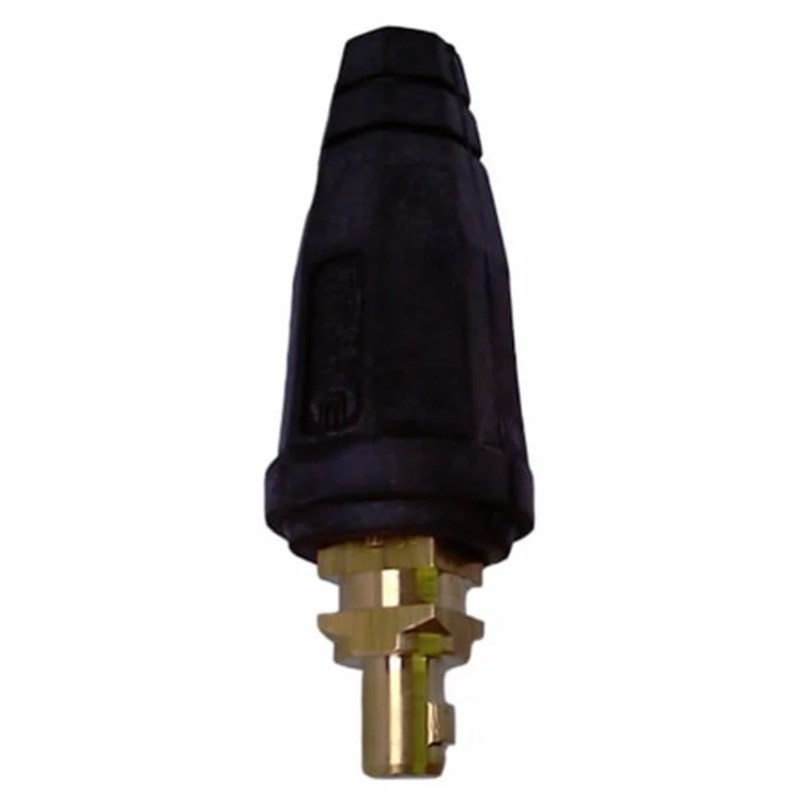

The Abicor Binzel ABI-PLUG 50-70 Male Welding Cable Plug is a heavy-duty quick-connect coupling designed for high-amperage industrial welding cables from 50mm² to 70mm². Featuring a 12.8mm Dinse-style male pin, robust brass construction and a secure push-and-twist locking mechanism, it provides dependable electrical transmission and mechanical retention. The dual screw cable clamping system and protective insulated housing make it suitable for demanding professional arc welding applications where secure connections, high current capacity and durability are essential.
Features & Benefits
» Heavy-duty Abicor Binzel ABI-PLUG connector designed for high-amperage industrial welding applications
» Suitable for welding cables with cross-sectional areas from 50mm² to 70mm²
» 12.8mm Dinse-style male pin provides compatibility with matching large-pin welding sockets
» Push-and-twist bayonet connection provides quick and secure attachment to compatible equipment
» Heavy-duty brass construction provides efficient electrical current transfer and heat dissipation
» Square end-block design provides excellent resistance against twisting and cable pull-out forces
» Dual grub screw clamping system provides secure mechanical retention of heavy welding cables
» Insulated rubber or neoprene housing provides electrical, moisture and flash-over protection
» Heavy-duty construction helps minimise contact heating and power loss during demanding welding operations
» Suitable for compatible welding machines, panel sockets and heavy-duty cable extension connections
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Male Welding Cable Plug
» Series: ABI-PLUG
» Connector Size: 50-70
» Part Number: 511.0331
» Connection Type: Dinse-Style Male Quick Connector
» Connection Method: Push-And-Twist Bayonet
» Cable Cross-Section Capacity: 50mm² To 70mm²
» Approximate Amperage Rating: 400A To 500A
» Male Pin Diameter: 12.8mm
» Pin Length To Shoulder: 20mm
» Brass Lug Length: 55mm
» Cable Retention: Dual Grub / Allen Screw
» Connector Material: Brass
» Housing Material: Insulating Rubber / Neoprene
» Compatible Pin Profile: 12.8mm / 13mm
» Standard: EN 60974-12
