Plug Dinze Type 70-95 5110342 Binzel
SKU:
10024360

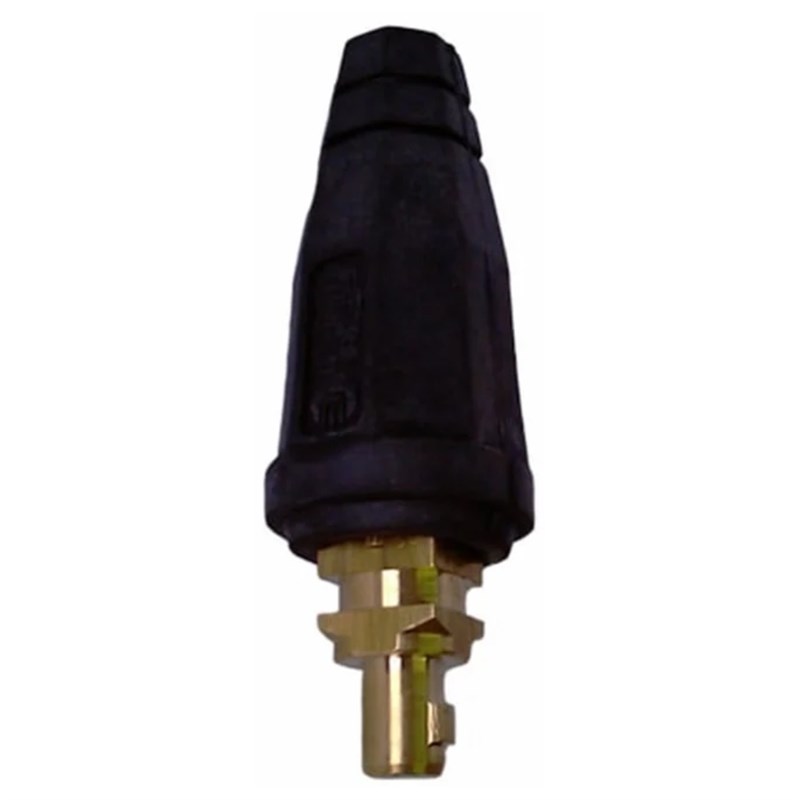

The Abicor Binzel ABI-PLUG 70-95 Male Welding Cable Plug is an ultra-heavy-duty quick-connect coupling designed for high-current welding and earth return cables from 70mm² to 95mm². Featuring a 12.8mm Dinse-style male pin, robust brass construction and a secure push-and-twist bayonet connection, it provides reliable power transmission at currents up to 500A. Its dual screw cable clamping system and high-dielectric insulated housing provide excellent mechanical retention, electrical protection and durability for demanding industrial arc welding applications.
Features & Benefits
» Ultra-heavy-duty Abicor Binzel ABI-PLUG connector designed for high-current industrial welding applications
» Suitable for welding and earth return cables with cross-sectional areas from 70mm² to 95mm²
» Maximum current rating of 500A supports demanding high-amperage welding operations
» 12.8mm Dinse-style male pin provides compatibility with matching 13mm-profile welding sockets
» Push-and-twist bayonet mechanism enables fast, secure connection to compatible equipment
» Heavy-duty brass construction provides efficient current transfer while helping minimise voltage drop and contact heating
» Square end-block design provides excellent resistance against twisting and cable pull-out forces
» Dual grub screw clamping system securely retains large cross-section welding cables
» High-dielectric moulded rubber housing provides electrical insulation and flash-over protection
» Suitable for welding power connections, earth return leads and heavy-duty cable extension applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Male Welding Cable Plug
» Series: ABI-PLUG
» Connector Size: 70-95
» Part Number: 511.0342
» Connection Type: Dinse-Style Male Quick Connector
» Connection Method: Push-And-Twist Bayonet
» Cable Cross-Section Capacity: 70mm² To 95mm²
» Maximum Current Rating: 500A
» Male Pin Diameter: 12.8mm
» Compatible Pin Profile: 12.8mm / 13mm
» Pin Length To Shoulder: 20mm
» Cable Retention: Dual Grub / Allen Screw
» Connector Material: Brass
» Housing Material: High-Dielectric Moulded Rubber
» Net Weight: 0.256kg
» Standard: EN 60974-12
