Socket Dinze Type 10-25 5110303 Binzel
SKU:
10024361

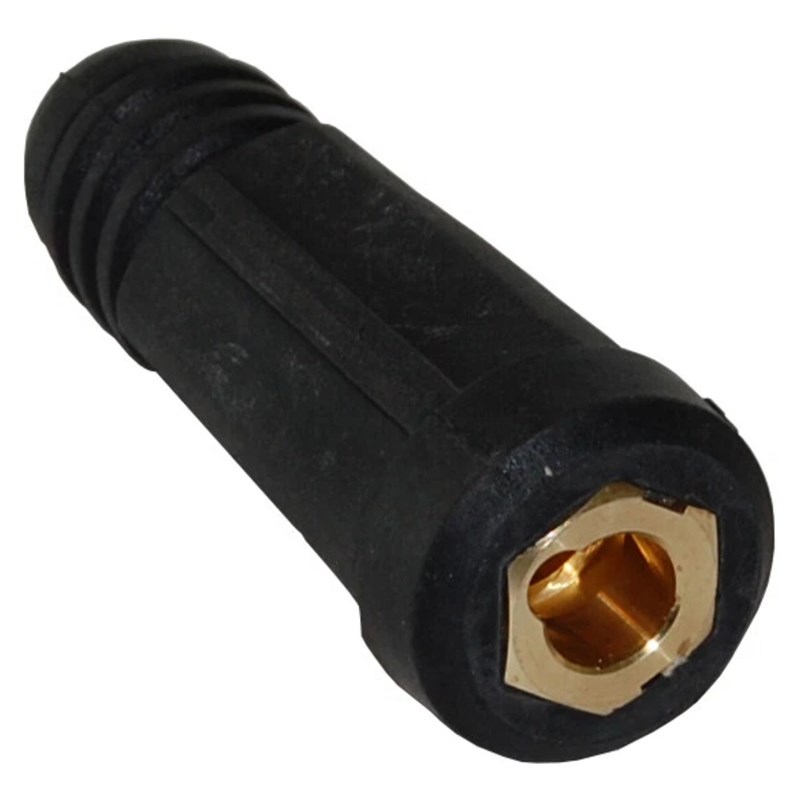

The Abicor Binzel ABIPLUG ABI-CF 10-25 Female Cable Socket is a compact, fully insulated welding cable connector designed for 10mm² to 25mm² cable installations. Featuring a 9mm small-format Dinse connection and push-and-twist locking mechanism, it provides a secure, low-resistance connection for welding cable extensions and compatible equipment. Its heavy-duty insulated construction provides excellent electrical protection and durability in workshop and industrial welding environments.
Features & Benefits
» Compact female welding cable socket designed for 10mm² to 25mm² welding cables
» Small-format 9mm Dinse-style connection provides compatibility with matching male welding cable plugs
» Push-and-twist bayonet mechanism provides quick, secure connection and disconnection
» Square end-block design helps provide excellent resistance to twisting and cable pull-out
» Dual internal grub screw arrangement securely clamps the welding cable
» Low-resistance connection helps minimise voltage drop and excessive heat generation
» Heavy-duty moulded rubber insulation provides excellent dielectric protection
» Insulated outer boot helps protect against moisture, electrical flash-over and accidental contact
» Suitable for welding cable extensions and low-to-medium current welding equipment
» Robust construction is designed for repeated use in professional workshop environments
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Female Welding Cable Socket
» Product Series: ABIPLUG
» Type: ABI-CF 10-25
» Part Number: 511.0303
» Connection Gender: Female
» Cable Cross-Section Capacity: 10mm² To 25mm²
» Connection Size: 9mm Small Dinse
» Connection Mechanism: Push-And-Twist Bayonet
» Cable Retention: Internal Grub Screw Clamping
» Insulation Material: Moulded Neoprene Rubber
» Maximum Current Rating: Approximately 150A
» Approximate Weight: 0.10kg To 0.14kg
» Standard: BS EN 60974-12
