Socket Dinze Type 35-50 5110313 Binzel
SKU:
10024362

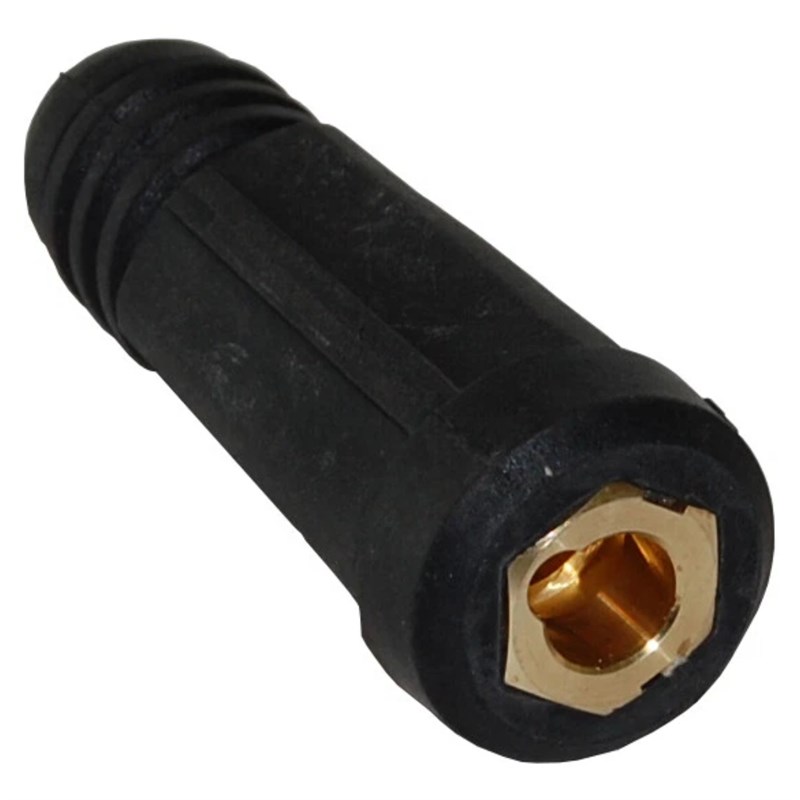

The Abicor Binzel ABIPLUG ABI-CF 35-50 Female Cable Socket is a heavy-duty, fully insulated welding cable connector designed for 35mm² to 50mm² cable installations. Featuring a large 13mm Dinse-style connection and secure push-and-twist locking mechanism, it provides reliable, low-resistance coupling for welding cable extensions and compatible equipment. Its robust brass connection system and insulated rubber housing make it suitable for demanding professional and industrial welding environments.
Features & Benefits
» Heavy-duty female welding cable socket designed for 35mm² to 50mm² welding cables
» Large 13mm Dinse-style connection provides compatibility with matching industrial male welding cable plugs
» Push-and-twist bayonet mechanism provides fast, secure connection and disconnection
» Square end-block design provides excellent resistance to twisting and cable pull-out
» Heavy-duty internal grub screw securely clamps the welding cable conductor
» Low-resistance connection helps minimise voltage drop and excessive heat generation
» High-dielectric moulded rubber insulation provides excellent electrical protection
» Moisture-resistant outer boot helps protect against electrical flash-over, contamination and accidental contact
» Secure connection helps prevent looseness and electrical arcing during demanding welding applications
» Suitable for welding cable extensions and heavy-duty industrial welding equipment
» Compatible with standard large-pin 13mm Dinse-style male connectors
» Robust construction is designed for repeated professional and industrial use
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Female Welding Cable Socket
» Product Series: ABIPLUG
» Type: ABI-CF 35-50
» Part Number: 511.0313
» Connection Gender: Female
» Cable Cross-Section Capacity: 35mm² To 50mm²
» Connection Size: Large 13mm Dinse-Style
» Maximum Current Rating: Approximately 315A
» Connection Mechanism: Push-And-Twist Bayonet
» Cable Retention: Internal Grub Screw Clamping
» Insulation Material: Moulded Neoprene Rubber
» Application: Welding Cable Connection / Extension
» Standard: EN 60974-12
