Socket Dinze Type 50-70 5110329 Binzel
SKU:
10024363

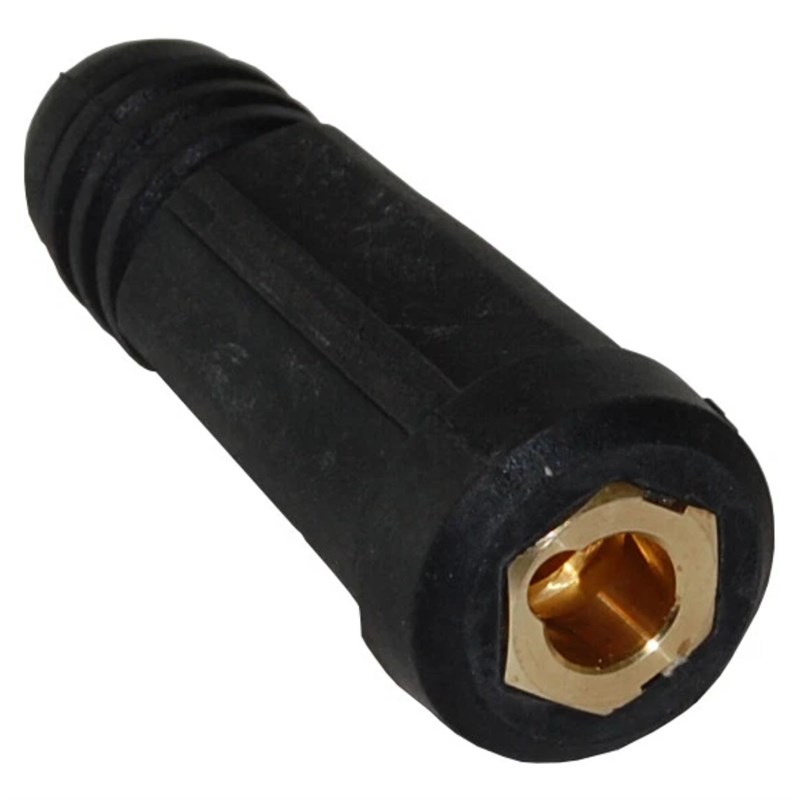

The Abicor Binzel ABIPLUG ABI-CF 50-70 Female Cable Socket is a heavy-duty, fully insulated welding cable connector designed for 50mm² to 70mm² cable installations. Featuring a large 13mm Dinse-style connection and secure push-and-twist locking mechanism, it provides reliable, low-resistance coupling for high-amperage welding cable extensions. Its robust construction and high-dielectric rubber insulation make it suitable for demanding professional and industrial welding environments.
Features & Benefits
» Heavy-duty female welding cable socket designed for 50mm² to 70mm² welding cables
» Rated for high-current welding applications up to approximately 400A
» Large 13mm Dinse-style connection accepts compatible 12.8mm male connector pins
» Push-and-twist bayonet mechanism provides fast, secure connection and disconnection
» Proprietary square end-block design provides excellent resistance to twisting and cable pull-out
» Dual internal grub screw arrangement securely clamps heavy-gauge copper welding cable
» Low-resistance connection helps minimise voltage drop and excessive heat generation
» High-dielectric moulded rubber insulation provides excellent electrical protection
» Moisture and debris-resistant outer boot helps protect against flash-over and accidental electrical contact
» Secure connection helps reduce the risk of loosening and electrical arcing when cables are moved
» Compatible with standard large-pin 13mm Dinse-style male welding connectors
» Suitable for welding cable extensions and demanding industrial welding applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Female Welding Cable Socket
» Product Series: ABIPLUG
» Type: ABI-CF 50-70
» Part Number: 511.0329
» Connection Gender: Female
» Cable Cross-Section Capacity: 50mm² To 70mm²
» Connection Size: Large 13mm Dinse-Style
» Compatible Male Pin Diameter: Approximately 12.8mm
» Maximum Current Rating: 400A
» Connection Mechanism: Push-And-Twist Bayonet
» Cable Retention: Dual Internal Grub / Allen Screw Clamping
» Insulation Material: Moulded Neoprene Rubber
» Cross-Reference Panel Mounting Diameter: 30.5mm
» Application: Welding Cable Connection / Extension
» Standard: EN 60974-12
