Socket Dinze Type 70-95 5110340 Binzel
SKU:
10024364

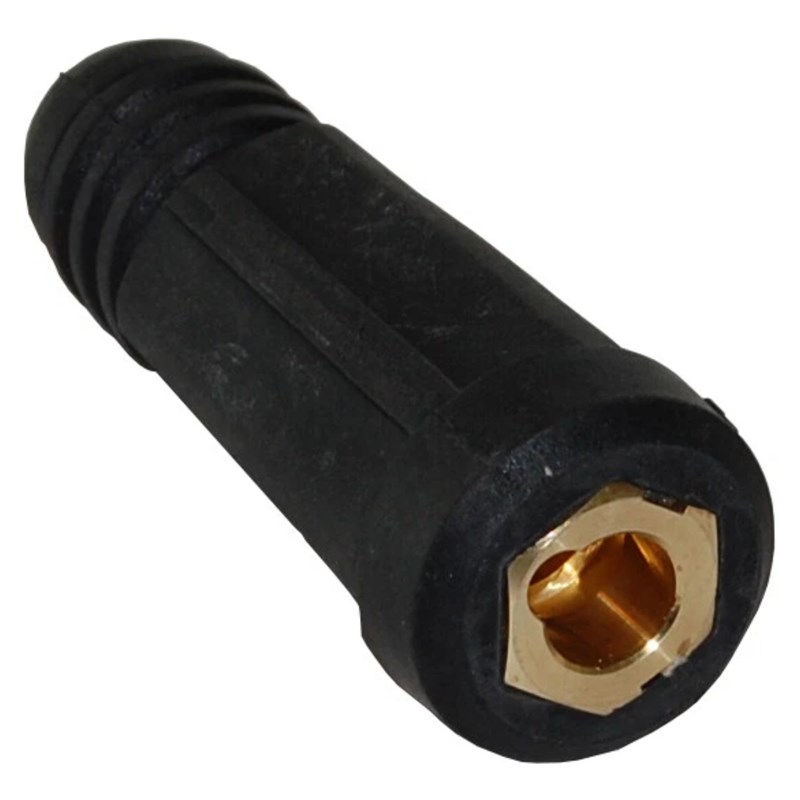

The Abicor Binzel ABIPLUG ABI-CF 70-95 Female Cable Socket is an ultra-heavy-duty, fully insulated welding cable connector designed for 70mm² to 95mm² cable installations. Featuring a large 13mm Dinse-style connection and secure push-and-twist locking mechanism, it provides reliable, low-resistance coupling for high-amperage welding and earth return cables. Its robust brass connection system and high-dielectric rubber insulation make it ideal for demanding industrial welding environments.
Features & Benefits
» Ultra-heavy-duty female welding cable socket designed for 70mm² to 95mm² cables
» Rated for demanding high-current welding applications up to approximately 500A
» Large 13mm Dinse-style connection accepts compatible 12.8mm male connector pins
» Push-and-twist bayonet mechanism provides fast, secure connection and disconnection
» Proprietary square end-block design provides excellent resistance to twisting and cable pull-out
» Dual internal grub screw arrangement securely clamps heavy-gauge copper welding cables
» Low-resistance connection helps minimise voltage drop and excessive heat generation
» High-dielectric moulded rubber insulation provides excellent electrical protection
» Moisture and debris-resistant outer boot helps protect against flash-over, short circuits and accidental contact
» Secure mechanical connection helps reduce the risk of loosening and electrical arcing during cable movement
» Compatible with standard large-pin 13mm Dinse-style male welding connectors
» Ideal for heavy-duty welding leads, earth return cables and industrial cable extension applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Female Welding Cable Socket
» Product Series: ABIPLUG
» Type: ABI-CF 70-95
» Part Number: 511.0340
» Connection Gender: Female
» Cable Cross-Section Capacity: 70mm² To 95mm²
» Connection Size: Large 13mm Dinse-Style
» Compatible Male Pin Diameter: Approximately 12.8mm
» Maximum Current Rating: 500A
» Connection Mechanism: Push-And-Twist Bayonet
» Cable Retention: Dual Internal Grub / Allen Screw Clamping
» Insulation Material: Moulded Neoprene Rubber
» Application: Welding Cable / Earth Return Cable Connection And Extension
» Standard: EN 60974-12
