Socket Panel Dinze Type 10-25 5110304 Binzel
SKU:
10024365

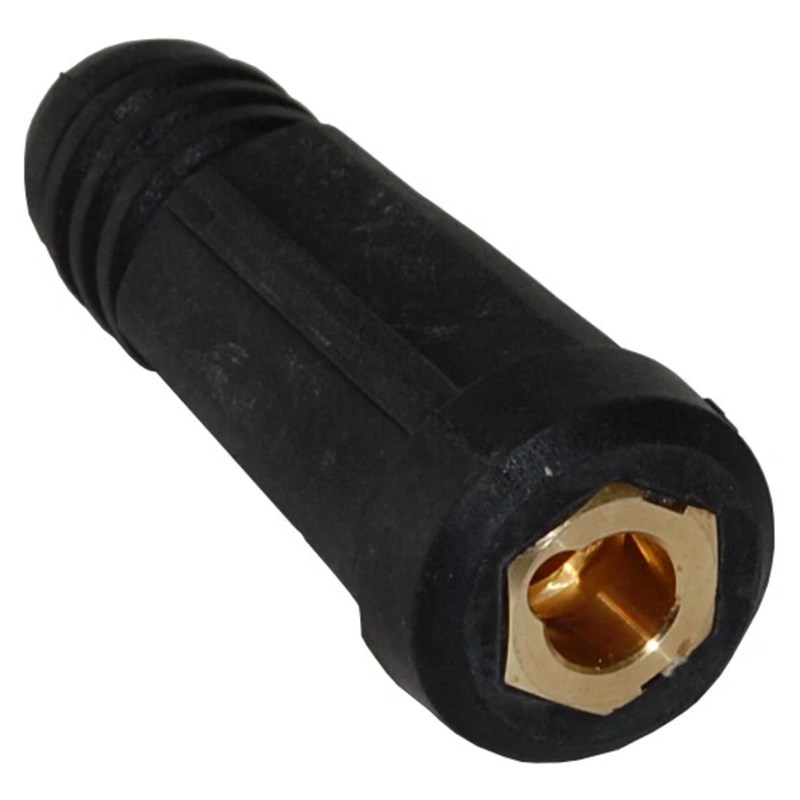

The Abicor Binzel ABIPLUG ABI-IF 10-25 Female Panel Socket is a compact machine-mounted welding connector designed for 10mm² to 25mm² cable systems. Featuring a small-format 9mm Dinse-style connection and secure push-and-twist locking mechanism, it provides a reliable connection point for welding leads and earth return cables. Its high-conductivity brass core and electrically insulating housing make it suitable for smaller inverter welders and other low-to-medium amperage welding equipment.
Features & Benefits
» Compact female panel socket designed for machine-side installation on welding equipment
» Suitable for welding cable systems with cross-sections from 10mm² to 25mm²
» Small-format 9mm Dinse-style connection accepts compatible male welding cable plugs
» Push-and-twist bayonet mechanism provides quick and secure cable connection
» High-conductivity solid brass core provides efficient electrical current transfer
» Low-resistance construction helps minimise voltage drop and excessive heat generation
» High-dielectric insulating housing provides excellent electrical and flash-over protection
» Anti-twist design helps prevent the socket loosening from the machine panel during repeated use
» Rear threaded mounting system provides secure attachment to the equipment chassis
» Suitable for electrode holder leads and earth return cable connections
» Compatible with standard small-format 9mm Dinse-style male connectors
» Ideal for compact inverter welders and other low-to-medium amperage welding equipment
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Female Welding Panel Socket
» Product Series: ABIPLUG
» Type: ABI-IF 10-25
» Part Number: 511.0304
» Connection Gender: Female
» Mounting Type: Machine / Chassis Panel Mount
» Cable Cross-Section Capacity: 10mm² To 25mm²
» Connection Size: 9mm Small Dinse-Style
» Internal Throat Diameter: 9.0mm
» Width Across Keyway: Approximately 11.0mm
» Operating Amperage Range: Approximately 100A To 200A
» Connection Mechanism: Push-And-Twist Bayonet
» Chassis Attachment: Threaded Brass Lug With Lock Washer And Retaining Nut
» Core Material: Brass
» Housing Material: High-Dielectric Insulating Compound
» Net Weight: Approximately 52g
» Application: Welding Lead / Earth Return Cable Connection
» Standard: EN 60974-12
