Socket Panel Dinze Type 35-50 5110314 Binzel
SKU:
10024366

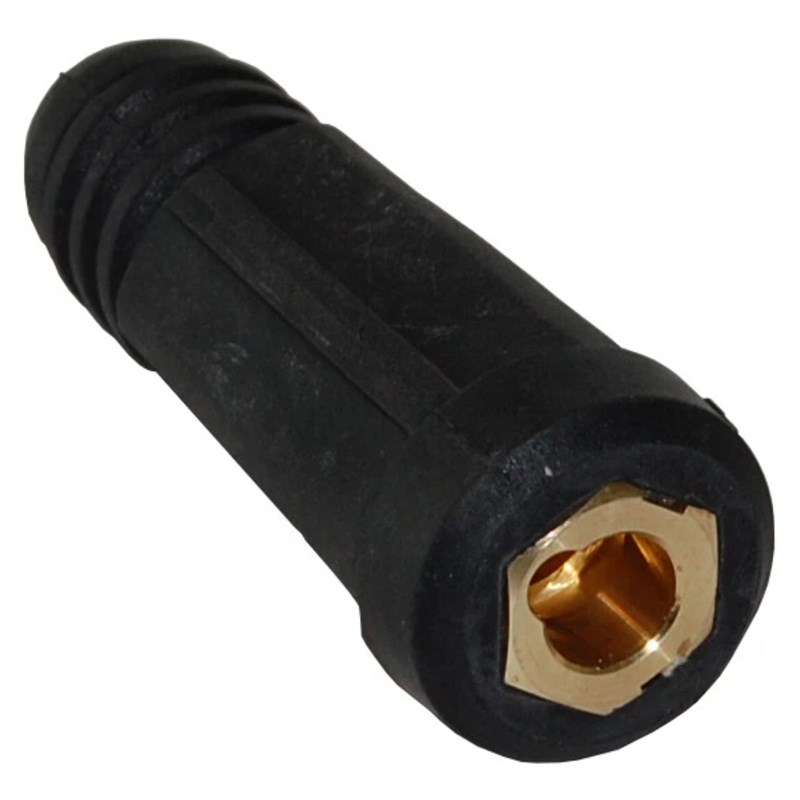

The Abicor Binzel ABIPLUG ABI-IF 35-50 Female Panel Socket is a heavy-duty machine-mounted welding connector designed for 35mm² to 50mm² cable systems. Featuring a large 13mm Dinse-style connection and secure push-and-twist locking mechanism, it provides a reliable connection point for welding leads on industrial MIG, TIG and MMA equipment. Its high-conductivity brass core and electrically insulating housing provide dependable power transmission and durability in demanding welding environments.
Features & Benefits
» Heavy-duty female panel socket designed for machine-side installation on industrial welding equipment
» Suitable for welding cable systems with cross-sections from 35mm² to 50mm²
» Large 13mm Dinse-style connection accepts compatible 12.8mm male welding cable plugs
» Push-and-twist bayonet mechanism provides quick, secure cable connection and disconnection
» High-conductivity solid brass core provides efficient electrical current transfer
» Low-resistance construction helps minimise voltage drop and excessive heat generation
» Heat-resistant insulating front collar provides excellent dielectric and flash-over protection
» Anti-twist mounting design helps prevent the socket loosening during frequent cable changes
» Rear threaded brass stud, lock washer and retaining nut provide secure chassis installation
» Suitable for installation on compatible sheet metal, steel and heavy-duty plastic equipment panels
» Compatible with standard large-format 13mm Dinse-style male connectors
» Suitable for industrial MIG, TIG and MMA welding equipment and wire feeders
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Female Welding Panel Socket
» Product Series: ABIPLUG
» Type: ABI-IF 35-50
» Part Number: 511.0314
» Connection Gender: Female
» Mounting Type: Machine / Chassis Panel Mount
» Cable Cross-Section Capacity: 35mm² To 50mm²
» Connection Size: Large 13mm Dinse-Style
» Compatible Male Pin Diameter: Approximately 12.8mm
» Maximum Current Rating: Approximately 315A
» Connection Mechanism: Push-And-Twist Bayonet
» Chassis Attachment: Threaded Brass Stud With Lock Washer And Retaining Nut
» Core Material: Brass
» Housing Type: High-Dielectric Insulated Collar
» Compatible Panel Materials: Sheet Metal / Steel / Heavy-Duty Plastic
» Suitable Welding Processes: MIG / TIG / MMA
» Application: Welding Machine / Wire Feeder Cable Connection
» Standard: EN 60974-12
