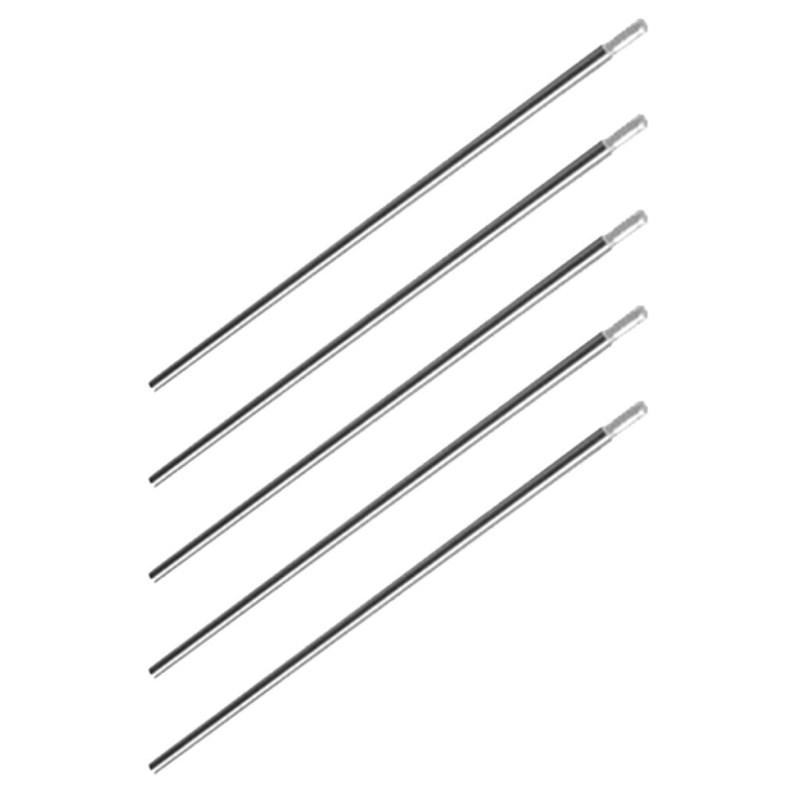

Tungsten Zirconiated 2.4mm White Tip 7000033
SKU:
10024380
The Abicor Binzel 2.4mm 0.8% Zirconiated White Tip Tungsten Electrode is a premium non-consumable TIG welding electrode designed primarily for medium-to-high amperage AC welding applications. Featuring 0.8% zirconium oxide (WZ08), it provides excellent arc stability, reliable tip formation and strong resistance to tungsten contamination. Its 2.4mm diameter makes it particularly suitable for professional TIG welding of aluminium, magnesium and their respective alloys.
Features & Benefits
» Premium 0.8% zirconiated tungsten electrode designed primarily for AC TIG welding
» Optimised for medium-to-high amperage welding of aluminium and magnesium
» Zirconium oxide composition promotes excellent arc stability and consistent welding performance
» Forms a stable, concentric rounded or domed tip during appropriate AC operation
» Stable tip profile helps minimise arc wandering and provides accurate weld pool control
» Excellent resistance to splitting, blistering and fragmentation during demanding AC welding
» Helps minimise the risk of tungsten contamination entering critical weld pools
» 2.4mm diameter provides increased current capacity for professional fabrication applications
» White tip provides quick visual identification of the WZ08 zirconiated classification
» Completely free from radioactive thorium
» Suitable for aluminium, magnesium and their respective alloys
» Ideal for fabrication and other demanding medium-to-high amperage AC TIG applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: TIG Tungsten Electrode
» Part Number: 700.0033
» Electrode Type: 0.8% Zirconiated
» Classification: WZ08
» Zirconium Oxide Content: 0.70% To 0.90%
» Electrode Diameter: 2.4mm
» Electrode Length: 175mm
» Tip Colour: White
» Electrode Type: Non-Consumable
» Preferred Polarity: AC
» DC Suitability: Not Recommended
» Typical Operating Range: Approximately 80A To 180A
» Suitable Materials: Aluminium / Magnesium / Aluminium Alloys / Magnesium Alloys
» Welding Process: TIG / GTAW
» Standards: ISO 6848 / EN 26848
» Radioactive: No
