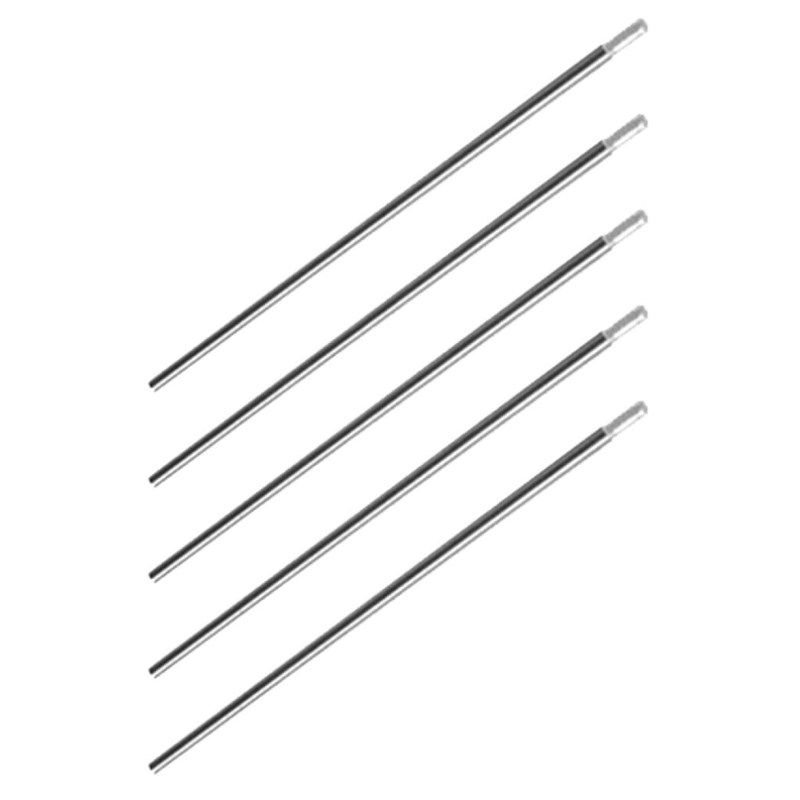

Tungsten Zirconiated 3.2mm White Tip 7000035
SKU:
10024381
The Abicor Binzel 3.2mm 0.8% Zirconiated White Tip Tungsten Electrode is a premium non-consumable TIG welding electrode designed specifically for high-amperage AC welding applications. Featuring 0.8% zirconium oxide (WZ08), it provides excellent arc stability, reliable rounded tip formation and strong resistance to tungsten contamination. Its heavy-duty 3.2mm diameter makes it particularly suitable for demanding TIG welding of aluminium, magnesium and their respective structural alloys.
Features & Benefits
» Premium 0.8% zirconiated tungsten electrode designed specifically for AC TIG welding
» Heavy-duty 3.2mm diameter provides increased current capacity for demanding high-amperage applications
» Optimised for welding aluminium, magnesium and their respective structural alloys
» Zirconium oxide composition promotes excellent arc stability and consistent welding performance
» Forms and maintains a stable, concentric rounded or domed tip during appropriate AC operation
» Excellent thermal capacity helps withstand demanding electrical and thermal loads
» Strong resistance to splitting, spitting and structural erosion during high-current AC welding
» Helps minimise the risk of tungsten inclusions and weld pool contamination
» Stable electrode characteristics help reduce arc wandering and provide accurate weld pool control
» White tip provides quick visual identification of the WZ08 zirconiated classification
» Completely free from radioactive thorium
» Ideal for heavy-gauge aluminium, marine alloy, structural fabrication and other demanding AC TIG applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: TIG Tungsten Electrode
» Part Number: 700.0035
» Electrode Type: 0.8% Zirconiated
» Classification: WZ08
» Zirconium Oxide Content: 0.70% To 0.90%
» Electrode Diameter: 3.2mm
» Electrode Length: 175mm
» Tip Colour: White
» Electrode Type: Non-Consumable
» Preferred Polarity: AC
» DC Suitability: Not Recommended
» Typical Operating Range: Approximately 150A To 300A+
» Suitable Materials: Aluminium / Magnesium / Aluminium Alloys / Magnesium Alloys
» Welding Process: TIG / GTAW
» Standards: ISO 6848 / EN 26848
» Radioactive: No
