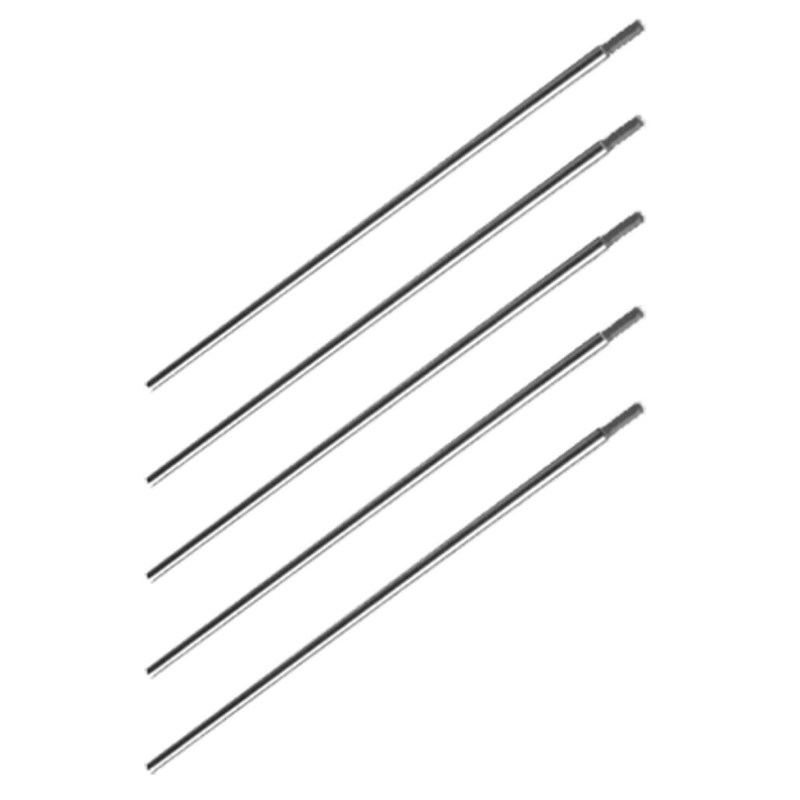

Tungsten Ceriated 3.2mm Grey Tip 7000177 Binzel
SKU:
10024384
The Abicor Binzel 3.2mm 2% Ceriated Grey Tip Tungsten Electrode is a premium non-consumable TIG welding electrode designed for high-amperage and heavy-duty fabrication applications. Featuring 2% cerium oxide (WC20), it provides a non-radioactive alternative to traditional thoriated tungsten electrodes while delivering reliable arc ignition, excellent arc stability and strong thermal performance. Its 3.2mm diameter makes it particularly suitable for demanding TIG welding on thick mild steel, stainless steel, nickel alloys, titanium and copper.
Features & Benefits
» Premium 2% ceriated tungsten electrode designed for demanding professional and industrial TIG welding
» Heavy-duty 3.2mm diameter provides increased current capacity for high-amperage welding applications
» Cerium oxide composition promotes reliable high-frequency arc ignition and consistent arc restarts
» Provides excellent arc stability across a broad range of welding currents
» Non-radioactive alternative to traditional 2% thoriated tungsten electrodes
» Grey tip provides quick visual identification of the WC20 ceriated classification
» Excellent performance with DC welding and stable operation in suitable AC applications
» Large electrode cross-section provides excellent thermal capacity during prolonged welding cycles
» Good resistance to tip deformation and splitting when operated within the appropriate current range
» Stable electrode characteristics help minimise arc wandering during precision and heavy structural welding
» Helps minimise the risk of tungsten contamination when correctly prepared and operated
» Suitable for mild steel, stainless steel, nickel alloys, titanium and copper
» Ideal for heavy fabrication, structural plate, pipework and other high-amperage TIG applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: TIG Tungsten Electrode
» Part Number: 700.0177
» Electrode Type: 2% Ceriated
» Classification: WC20
» Cerium Oxide Content: 2%
» Electrode Diameter: 3.2mm
» Electrode Length: 175mm
» Tip Colour: Grey
» Electrode Type: Non-Consumable
» Radioactive: No
» Preferred Polarity: DC
» AC Capability: Yes
» Typical Operating Range: Approximately 150A To 300A+
» Suitable Materials: Mild Steel / Stainless Steel / Nickel Alloys / Titanium / Copper
» Welding Process: TIG / GTAW
» Standards: ISO 6848 / EN 26848
