Plug 13A 240v Black HDPT138-01
SKU:
10118939

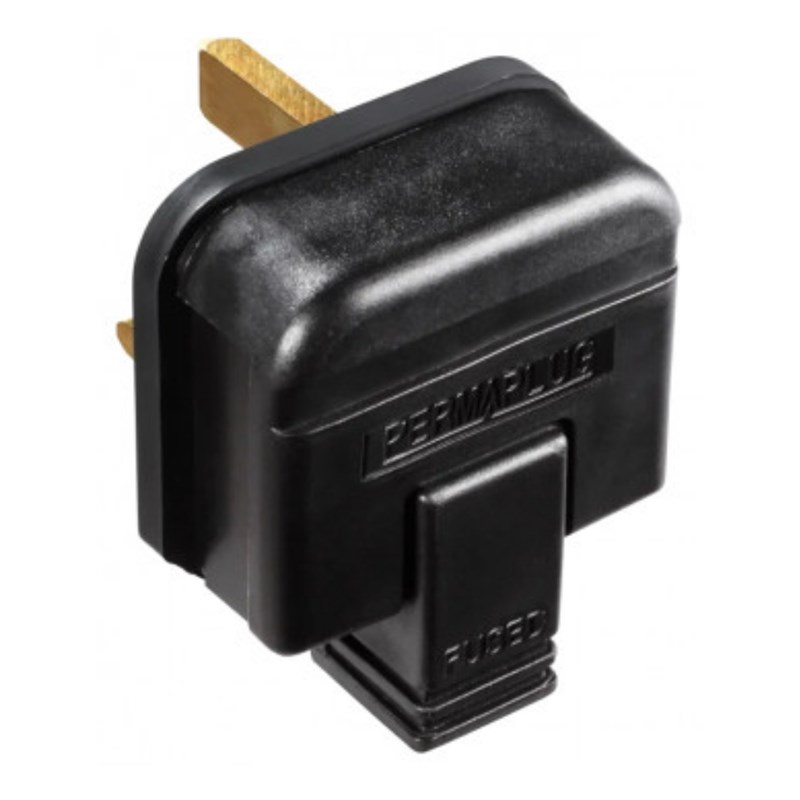

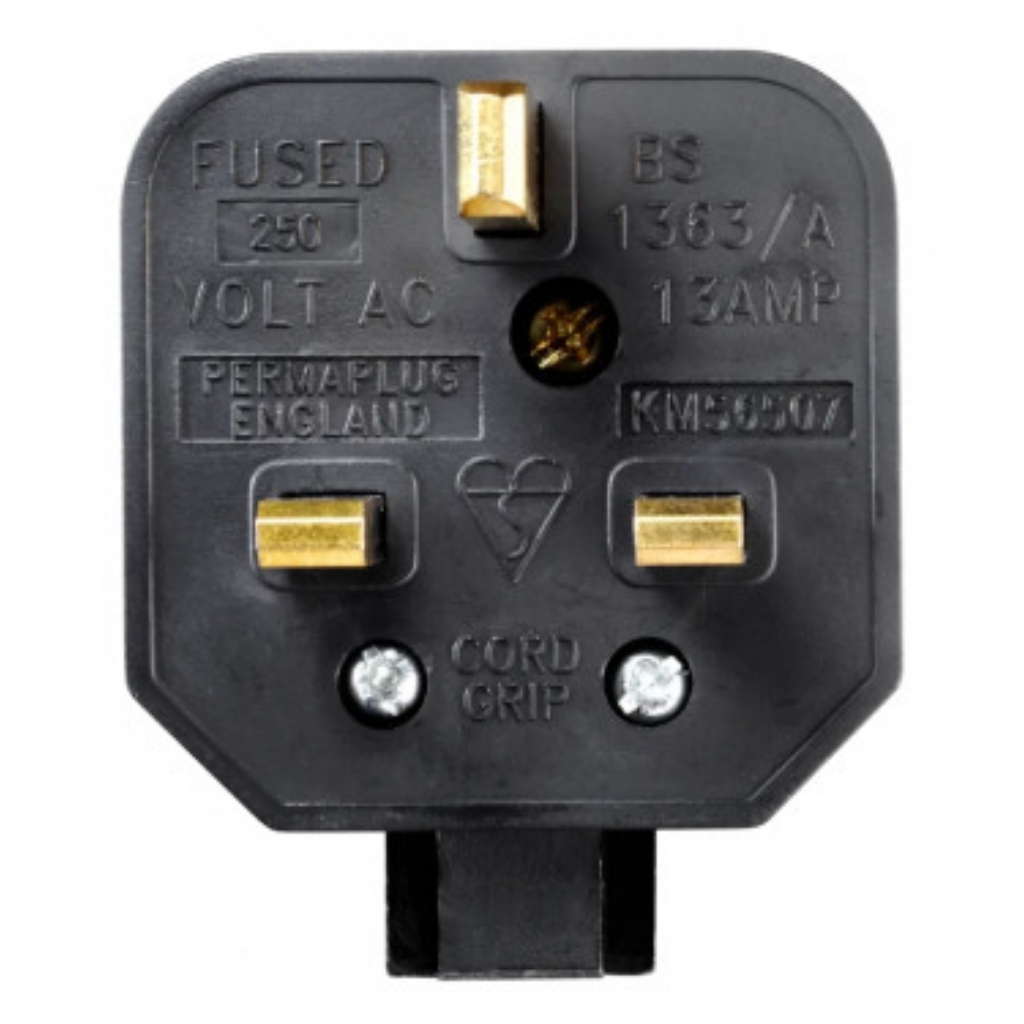

The Masterplug Permaplug HDPT13B-01 Heavy Duty 13A Rewireable Plug is a robust UK Type G mains plug designed for demanding commercial and industrial applications. It highlights a high-impact thermoplastic body, solid brass sleeved pins, and secure screw terminal connections for safe and reliable power distribution.
Features & Benefits
» Heavy-duty rewireable 13A mains plug for professional and industrial applications
» Manufactured from impact-resistant thermoplastic for long service life
» Suitable for workshops, commercial equipment, stage lighting, and extension lead construction
» Solid brass pins with insulated sleeves provide enhanced electrical safety
» Secure screw clamp terminals ensure reliable cable termination
» Heavy-duty two-screw cable clamp prevents cable strain and accidental pull-out
» Supplied fitted with a 13A high rupturing capacity (HRC) fuse
» Compatible with 1.0mm² to 1.5mm² cable sizes
» Rewireable design allows easy cable replacement and maintenance
» Manufactured to BS 1363 standards for dependable performance
» Ideal for custom extension leads, power tools, workshop equipment, and commercial electrical installations
» Designed for indoor use in dry environments
Technical Specifications
» Brand: Masterplug
» Product Range: Permaplug
» Manufacturer Part Number: HDPT13B-01
» Product Type: Heavy Duty Rewireable Plug
» Plug Type: UK Type G (BS 1363)
» Pole Configuration: 2P+E
» Voltage Rating: 220-250V AC
» Current Rating: 13A
» Maximum Load: 3120W
» Standard: BS 1363 / BS 1363-2
» IP Rating: IP20
» Mounting Type: In-Line Cable Mount
» Compatible Cable Size: 1.0mm² To 1.5mm²
» Body Material: High-Impact Thermoplastic Elastomer (TPE)
» Pin Material: Solid Brass With Insulated Sleeves
» Terminal Type: Screw Clamp
» Cable Clamp: Two-Screw External Strain Relief
» Fuse Supplied: 13A High Rupturing Capacity (HRC) Fuse
» Height: 57.5mm
» Width: 48.0mm
» Depth (Pins Excluded): 23.8mm
» Depth (Pins Included): 46.7mm
» Weight: 0.1kg
» Suitable For: Indoor Commercial, Industrial, Workshop, And Extension Lead Applications
