Hose Hydraulic 1.1/4" Ultra-Flex 6000 420 Bar
SKU:
10106281

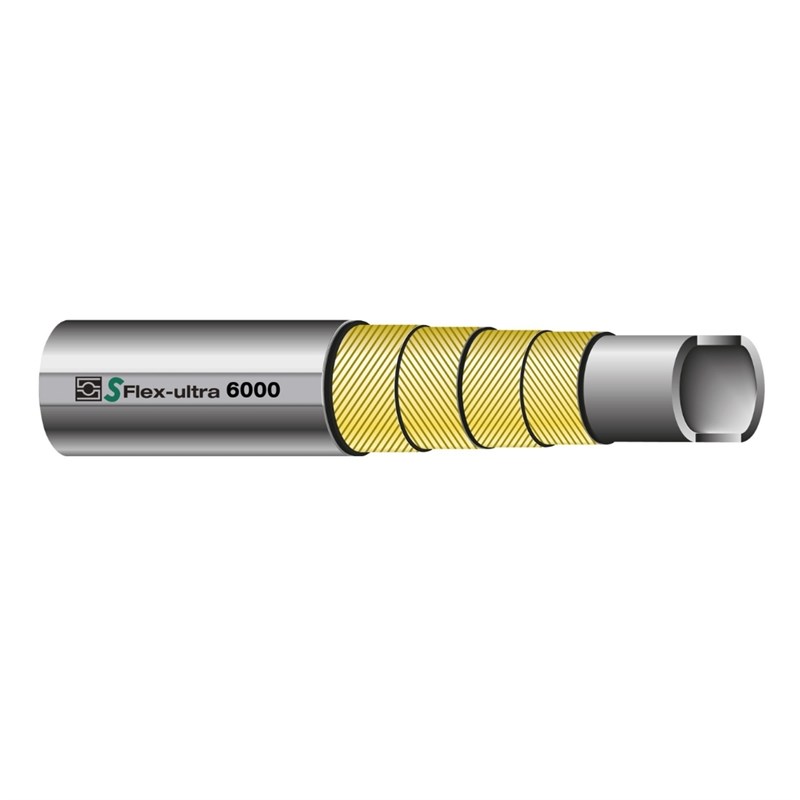

The STAUFF HOS-FLU6000-31-R-STM Flex Ultra 6000 Hydraulic Hose is a highly flexible ultra high-pressure multispiral hydraulic hose designed for demanding industrial and mobile hydraulic systems. It highlights six high-tensile steel wire spiral reinforcement layers, exceptional pressure capability, and superior resistance to abrasion, ozone, and weathering.
Back Ordered
Typical Lead Time: 4 Days
Features & Benefits
» Highly flexible multispiral hydraulic hose engineered for ultra high-pressure hydraulic systems
» Flex Ultra 6000 construction provides enhanced flexibility for easier routing and installation
» Six high-tensile steel wire spiral reinforcement layers deliver exceptional pressure resistance
» Increased reinforcement structure supports safe operation at extreme 420 bar pressure levels
» Maximum operating pressure of 420 bar (6,091 PSI) for demanding hydraulic applications
» Oil-resistant synthetic rubber inner tube ensures compatibility with hydraulic oils
» Abrasion-resistant outer cover improves durability in harsh industrial environments
» Ozone and weather-resistant outer layer supports extended outdoor service life
» Suitable for continuous operating temperatures up to +120°C
» Capable of withstanding temporary peak temperatures up to +125°C
» Designed for high-performance mobile plant, mining, construction, and industrial hydraulic equipment
» Robust and flexible construction helps reduce installation stress and hose fatigue
Technical Specifications
» STAUFF Material Number: 2020080485
» Manufacturer Code: HOS-FLU6000-31-R-STM
» Country Of Origin: Czech Republic
» Standard / Type: Flex Ultra 6000 Multispiral Hose
» Hose Diameter: 1 1/4 in (DN 31)
» Reinforcement: 6 High Tensile Steel Wire Spiral Layers
» Inner Tube Material: Oil Resistant Synthetic Rubber
» Outer Cover Material: Abrasion, Ozone And Weather Resistant Synthetic Rubber
» Maximum Operating Pressure: 420 Bar
» Maximum Operating Pressure: 6,091 Psi
» Minimum Operating Temperature: -40°C
» Maximum Operating Temperature: +120°C Continuous
» Peak Temperature: +125°C Temporary Maximum
» Hose Type Feature: Highly Flexible Multispiral Hydraulic Hose
» Reinforcement Feature: Increased 6 Layer Spiral Construction For High Pressure Performance
