Hose Hydraulic 1/2" 4SP 415 Bar
SKU:
10012124

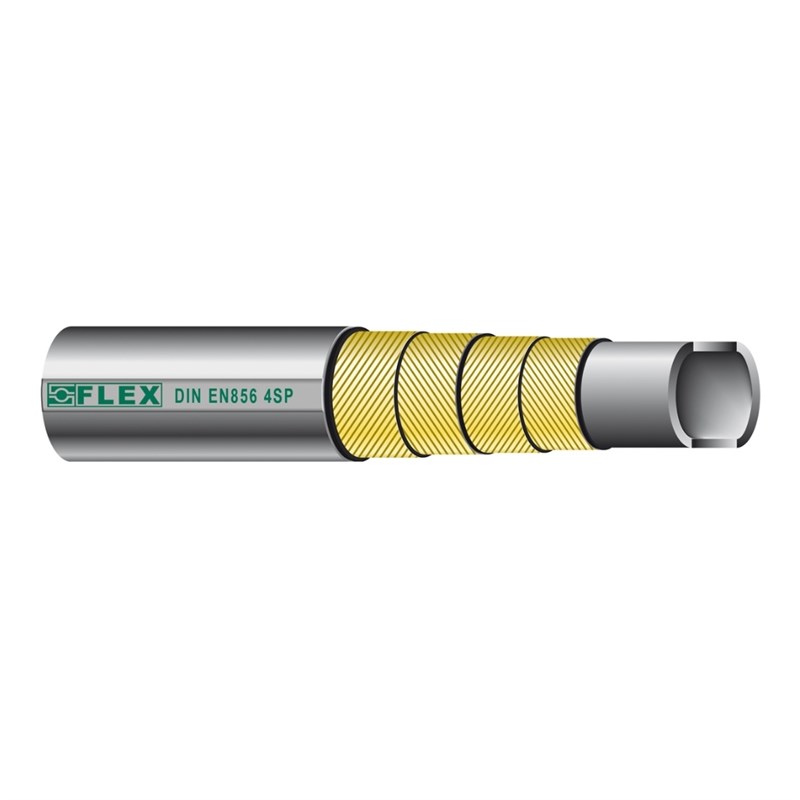

The STAUFF HOS-4SP-12-A-STM Hydraulic Hose is a heavy-duty multispiral hydraulic hose designed for ultra high-pressure hydraulic systems and demanding industrial applications. It highlights four high-tensile steel wire spiral reinforcement layers, exceptional pressure performance, and superior resistance to abrasion, ozone, and weathering.
Features & Benefits
» Heavy-duty hydraulic hose manufactured to DIN EN 856 4SP standards
» Four high-tensile steel wire spiral reinforcement layers provide exceptional pressure resistance
» Designed for demanding ultra high-pressure hydraulic applications
» Oil-resistant synthetic rubber inner tube ensures compatibility with hydraulic oils
» Abrasion-resistant outer cover improves durability in harsh industrial environments
» Ozone and weather-resistant outer layer supports extended outdoor service life
» Maximum operating pressure of 415 bar (6,019 PSI) for high-performance hydraulic systems
» Suitable for continuous operating temperatures up to +100°C
» Capable of withstanding temporary peak temperatures up to +120°C
» Robust multispiral construction supports heavy-duty mobile and industrial hydraulic equipment
» Suitable for construction, mining, agricultural, and industrial hydraulic systems
» Manufactured in the Czech Republic to stringent quality standards
Technical Specifications
» Brand: STAUFF
» STAUFF Material Number: 2020000256
» Manufacturer Code: HOS-4SP-12-A-STM
» Country Of Origin: Czech Republic
» Standard: DIN EN 856 4SP
» Hose Diameter: 1/2in
» Nominal Diameter: DN 12
» Reinforcement: 4 High-Tensile Steel Wire Spiral Layers
» Inner Tube Material: Oil-Resistant Synthetic Rubber
» Outer Cover Material: Abrasion, Ozone, And Weather-Resistant Synthetic Rubber
» Maximum Operating Pressure: 415 Bar / 6,019 PSI
» Minimum Operating Temperature: -40°C
» Maximum Continuous Operating Temperature: +100°C
» Maximum Peak Temperature: +120°C
» Application: Ultra High-Pressure Hydraulic Systems
