Regulator Oxygen S/Stage 2G 10Bar Nevoc GAS0150
SKU:
10109781

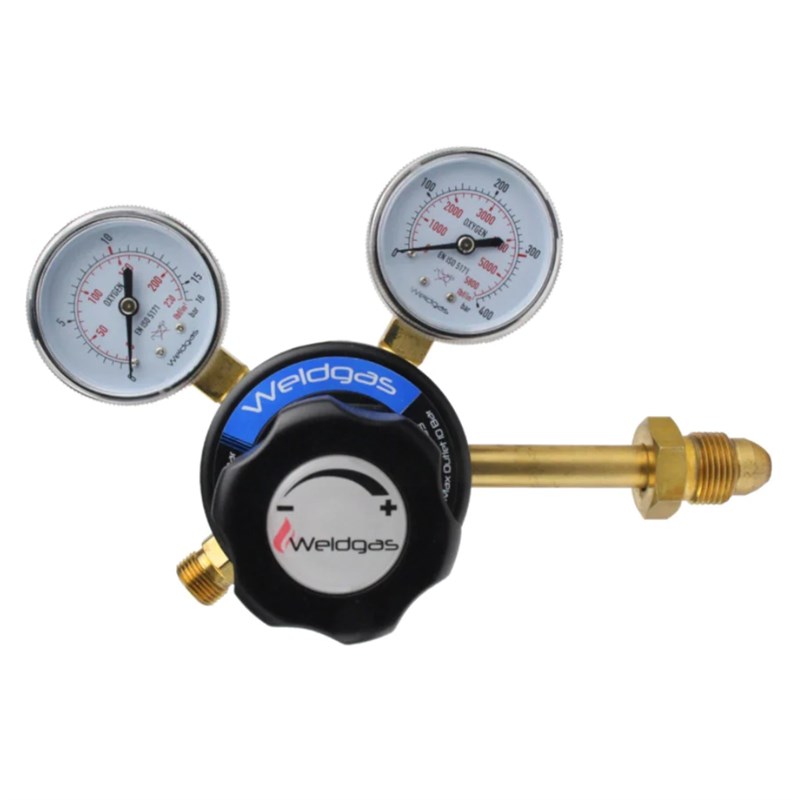

The Weldgas GAS0150 Single Stage 2 Gauge Oxygen NEVOC Regulator is a heavy-duty industrial regulator designed for controlled delivery of compressed oxygen from compatible high-pressure cylinders. Featuring a 300bar-rated NEVOC inlet, twin 50mm gauges and an adjustable 0–10bar outlet pressure range, it is suitable for professional cutting, heating, brazing and welding applications.
In Stock
Typical Lead Time: 16 Days
Features & Benefits
» Heavy-duty single-stage regulator designed specifically for professional compressed oxygen applications
» NEVOC inlet connection is designed for compatible high-pressure industrial oxygen cylinders operating up to 300bar
» Suitable for professional cutting, heating, brazing and welding applications
» Adjustable 0–10bar outlet pressure range provides controlled oxygen delivery across a variety of industrial requirements
» Twin 50mm high-contrast gauges clearly display cylinder contents pressure and regulated outlet pressure
» Side-entry configuration is designed for compatible cylinders with horizontally positioned outlet valves
» Encapsulated valve design with PCTFE/PTFE seating provides dependable pressure regulation
» Hot-forged precision-machined brass body provides robust construction for demanding workshop and industrial environments
» Fibre-reinforced elastomer diaphragm provides responsive pressure control during operation
» Internal sintered bronze filter helps prevent cylinder particulates from reaching the regulator valve mechanism
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Manufactured in accordance with BS EN ISO 2503 with NEVOC connection conforming to ISO 5145
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS0150
» Product Type: Oxygen NEVOC Gas Regulator
» Regulator Type: Single Stage
» Number Of Gauges: 2
» Gas Type: Compressed Oxygen
» Maximum Inlet Pressure: 300bar
» Outlet Pressure Range: 0–10bar
» Entry Configuration: Side Entry
» Inlet Connection Type: NEVOC
» Inlet Thread: W30 x 2 Right-Hand Male
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Regulated Outlet Pressure
» Body Material: Hot-Forged Brass
» Valve Seat Material: PCTFE/PTFE
» Diaphragm Material: Fibre-Reinforced Elastomer
» Inlet Filter: Sintered Bronze
» Handwheel Material: ABS Plastic
» Safety Device: Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: BS EN ISO 5171
» NEVOC Connection Standard: ISO 5145
