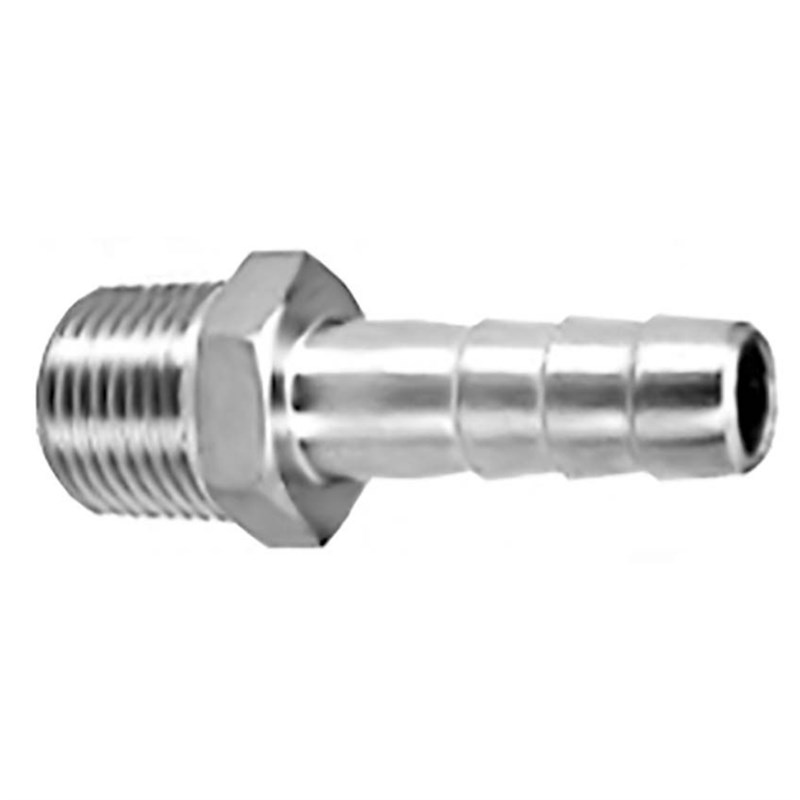

Hose Tail Hex 2" BSPT x 2" Stainless
SKU:
10014062
The SJ-F29-32 Hose Tail Adaptor is a heavy-duty industrial fitting designed for connecting large bore flexible hose to BSP threaded systems. It highlights a tapered BSPT male thread for secure sealing, a robust 2in hose barb connection, and high-flow performance for demanding fluid transfer applications.
Features & Benefits
» Heavy-duty hose tail adaptor designed for maximum flow fluid transfer applications
» 2in BSPT male tapered thread provides a secure and leak-resistant mechanical seal
» 2in hose barb designed to suit 2in (50.8mm) internal diameter flexible hose
» Straight-through high-flow configuration supports large volume liquid transfer with minimal restriction
» Suitable for pumping, irrigation, industrial processing, and heavy-duty pneumatic applications
» Hose barb profile provides strong hose retention when secured with suitable heavy-duty clamps
» PTFE tape or heavy-duty liquid pipe sealant is recommended for leak-free installation
» High-torque T-bolt or double-bolt clamps are recommended for secure hose retention under pressure
» Compatible with BSP threaded ports including BSPT and BSPP female connections
» Robust fitting design supports dependable operation in demanding industrial environments
» Suitable for workshops, pumping stations, agricultural systems, and fluid handling installations
» Not compatible with American NPT threaded systems
Technical Specifications
» Product Type: Hosetail Adaptor
» Part Number: SJ-F29-32
» Connection A: 2 in Male BSPT (British Standard Pipe Taper)
» Connection B: 2 in Hose Barb
» Hose Compatibility: 2 in / 50.8 mm Internal Diameter Hose
» Thread Type: BSPT Tapered Male Thread
» Configuration: Straight Through High Flow Hose Tail Adaptor
» Construction: Heavy Duty Industrial Design
» Sealing Method: Tapered Thread Provides Leak Proof Mechanical Seal
» Installation Requirement: Apply PTFE Tape Or Heavy Duty Liquid Pipe Sealant To BSPT Threads
» Hose Securing Method: Use High Torque T-Bolt Clamps Or Double Bolt Clamps
» Flow Characteristic: Maximum Flow Capacity For High Volume Fluid Transfer
» Thread Compatibility: Suitable For 2 in BSP Female Ports
» Thread Restriction: Not Compatible With American 2 in NPT Pipework
» Application: Heavy Duty Pumping And Fluid Transfer Systems
» Suitable Use: Industrial, Commercial And High Capacity Installations
