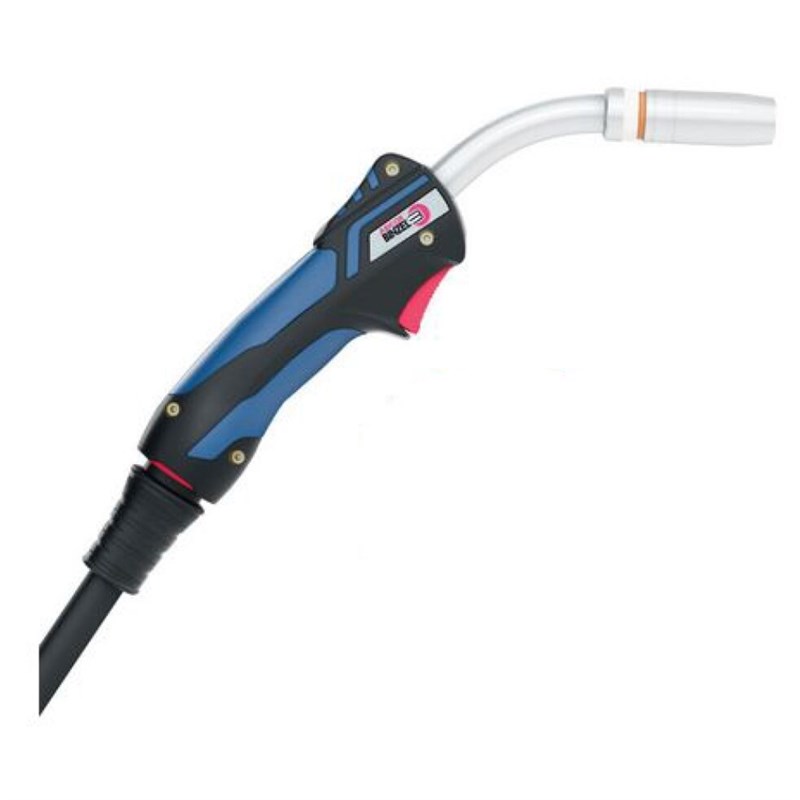

Mig Torch MB25AK Evo 4Mtr 0040511 Binzel
SKU:
10053586
The Abicor Binzel MB EVO PRO 25 4m MIG Welding Torch is a professional air-cooled MIG/MAG torch designed for reliable performance, lightweight handling and excellent operator comfort. Rated up to 230A with CO₂ and 200A with mixed gas at a 60% duty cycle, it is suitable for welding with 0.8mm to 1.2mm wire. The lightweight 4m Bikox LW cable, ergonomic two-component handle and optimised ball joint help reduce operator fatigue, while the standard MB25 front-end consumable system makes replacement parts straightforward and widely accessible.
Features & Benefits
» Professional Abicor Binzel MB EVO PRO 25 torch for manual MIG/MAG welding applications
» Rated up to 230A with CO₂ and 200A with mixed shielding gas for dependable fabrication performance
» 60% duty cycle provides reliable operation for professional workshop and production environments
» Lightweight Bikox LW coaxial cable helps reduce overall torch weight and operator wrist fatigue
» 4m cable assembly provides excellent working reach around larger components and fabrication areas
» Ergonomic two-component MB EVO PRO handle provides comfortable and controlled torch positioning
» Optimised ball joint improves cable flexibility and freedom of movement at the handle
» Fixed 45° swan neck provides practical access and positioning across general fabrication applications
» Standard MB25 consumable footprint makes replacement contact tips, holders and gas nozzles readily interchangeable
» Euro-Connector interface provides straightforward connection to compatible professional MIG/MAG welding machines
Technical Specifications
» Brand: Abicor Binzel
» Product Type: MIG/MAG Welding Torch
» Series: MB EVO PRO 25
» Part Number: 004.0511
» Cooling Type: Air / Gas-Cooled
» Torch Type: Manual
» Neck Configuration: Fixed / Rigid 45° Swan Neck
» Rated Current With CO₂: 230A
» Rated Current With Mixed Gas M21: 200A
» Duty Cycle: 60%
» Wire Size Capacity: 0.8mm To 1.2mm
» Cable Length: 4m
» Cable Type: Bikox LW
» Machine Connection: Euro-Connector
» Handle Type: MB EVO PRO Two-Component Handle
» Contact Tip Thread: M6
» Contact Tip Length: 28mm
» Tip Holder: MB25 Left-Hand Thread
» Tip Holder Part Number: 142.0001
» Gas Nozzle Type: Push-On
» Consumable System: MB25
» Welding Process: MIG/MAG
» Standard: EN 60974-7
