Tap Second M8 x1.25mm 08x8MS
SKU:
10000190

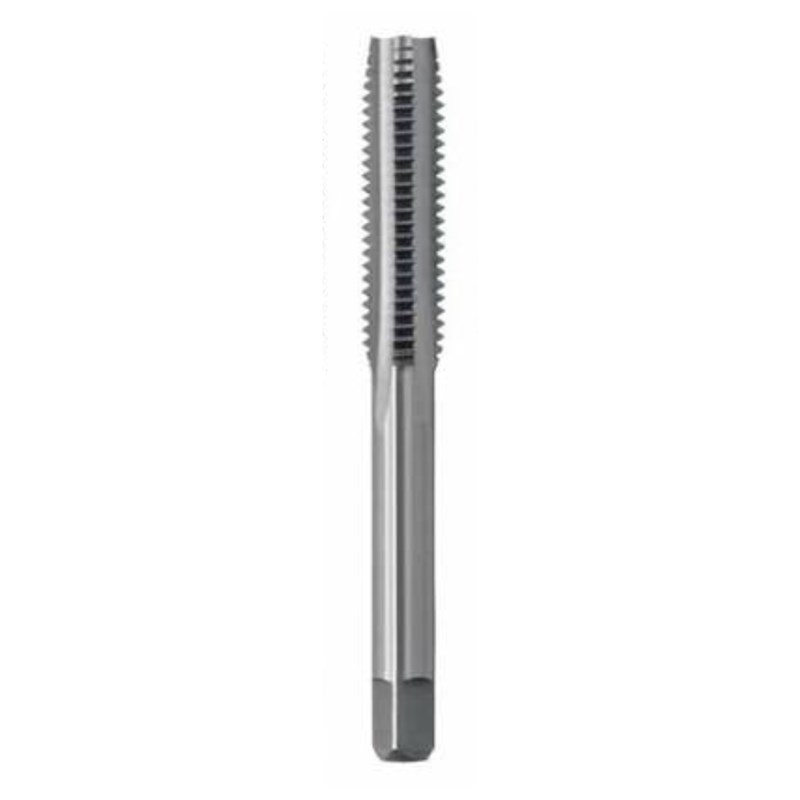

The M8 x 1.25mm Second Tap is a precision high-speed steel threading tool designed for cutting and deepening internal metric coarse threads. It highlights a medium chamfer lead for controlled thread formation, suitability for both hand and machine tapping, and compatibility with a wide range of engineering materials.
Features & Benefits
» Precision second tap designed for producing M8 x 1.25mm metric coarse internal threads
» Intermediate tap profile with 3-5 chamfered lead threads for progressive thread cutting
» Ideal for deepening threads after initial thread formation with a taper tap
» Manufactured from high-speed steel for durability and long service life
» Suitable for both hand tapping and machine tapping applications
» Compatible with through holes and blind holes in a wide range of materials
» Suitable for free-cutting steels up to 800 N/mm² tensile strength
» Effective for threading aluminium, brass, cast iron, and other machinable metals
» Produces accurate and consistent metric threads when used with the correct tapping drill size
» Designed for engineering, maintenance, fabrication, and workshop applications
Technical Specifications
» Product Type: Second Tap
» Part Number: 08x8MS
» Thread Size: M8
» Thread Pitch: 1.25mm
» Thread Form: Metric Coarse
» Material: High-Speed Steel (HSS)
» Chamfer Lead: 3 To 5 Threads
» Suitable Materials: Free-Cutting Steel Up To 800 N/mm², Aluminium, Brass, And Cast Iron
» Suitable Hole Types: Through Holes And Blind Holes
» Application: Internal Thread Cutting And Thread Deepening
» Operation: Hand Or Machine Tapping
