Hose Hydraulic 1/4" R1T 225 Bar
SKU:
10012024

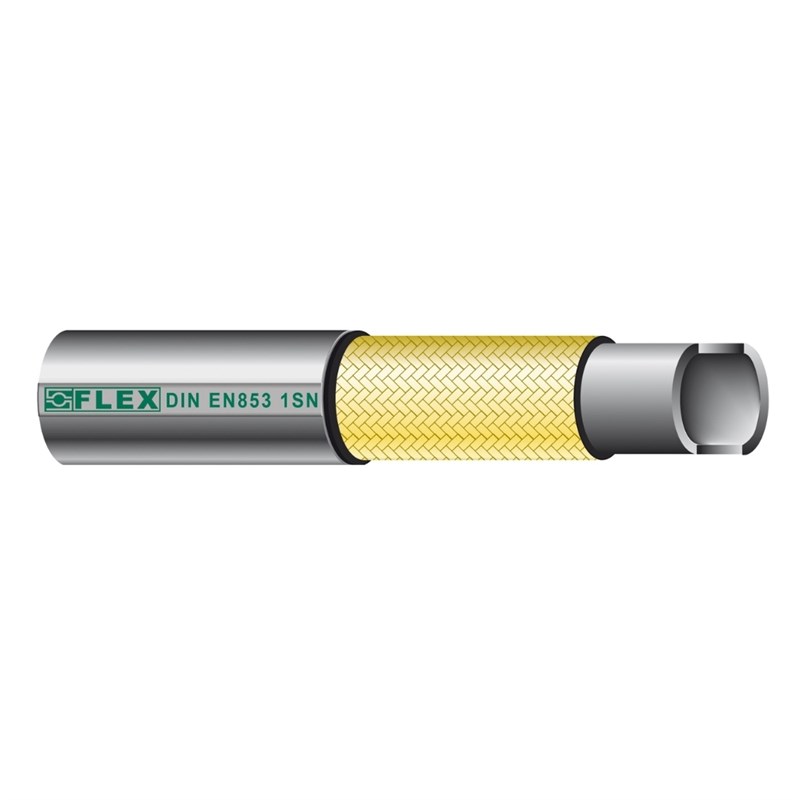

The STAUFF HOS-1SN-06-A-STM Hydraulic Hose is a durable single-wire braided hydraulic hose designed for medium-pressure hydraulic systems and industrial fluid transfer applications. It highlights reliable pressure performance, oil-resistant construction, and superior resistance to abrasion, ozone, and weathering.
Features & Benefits
» Hydraulic hose manufactured to DIN EN 853 1SN standards
» Single high-tensile steel braid reinforcement provides dependable medium-pressure performance
» Suitable for hydraulic systems, industrial fluid transfer, and return line applications
» Oil-resistant synthetic rubber inner tube ensures compatibility with hydraulic oils
» Abrasion-resistant outer cover improves durability in demanding industrial environments
» Ozone and weather-resistant outer layer supports extended outdoor service life
» Maximum operating pressure of 225 bar (3,263 PSI) for medium-pressure hydraulic applications
» Suitable for continuous operating temperatures up to +100°C
» Capable of withstanding temporary peak temperatures up to +120°C
» Flexible construction allows easier installation and hose routing
» Suitable for agricultural, construction, industrial, and mobile hydraulic equipment
» Manufactured in the Czech Republic to stringent quality standards
Technical Specifications
» STAUFF Material Number: 2020000150
» Manufacturer Code: HOS-1SN-06-A-STM
» Country Of Origin: Czech Republic
» Standard: DIN EN 853 1SN
» Hose Diameter: 1/4 in (DN 06)
» Reinforcement: 1 High Tensile Steel Braid
» Inner Tube Material: Oil Resistant Synthetic Rubber
» Outer Cover Material: Abrasion, Ozone And Weather Resistant Synthetic Rubber
» Maximum Operating Pressure: 225 Bar
» Maximum Operating Pressure: 3,263 Psi
» Minimum Operating Temperature: -40°C
» Maximum Operating Temperature: +100°C Continuous
» Peak Temperature: +120°C Temporary Maximum
