Contact Tip 1.0mm M6 1400242 Binzel (Sold Ea)
SKU:
10053590

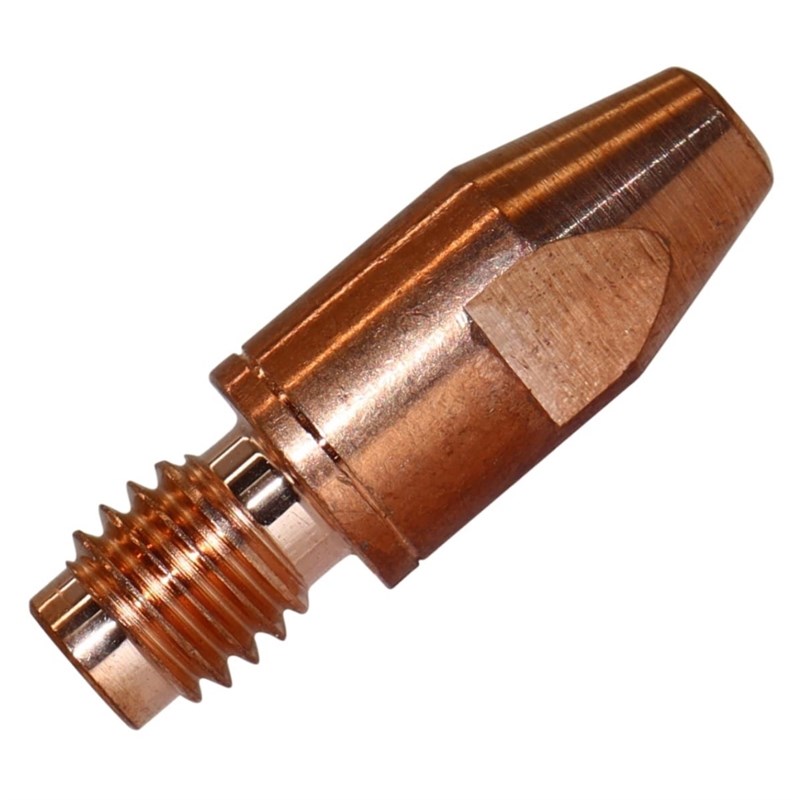

The Abicor Binzel 140.0242 M6 1.0mm MIG Contact Tip is a standard-duty E-Cu copper consumable designed to guide 1.0mm welding wire and transfer welding current as it passes through the torch. Featuring an M6 thread and 28mm body length, it is suitable for a wide range of compatible Binzel MIG/MAG torch systems and is supplied individually.
Features & Benefits
» Genuine Abicor Binzel contact tip designed for 1.0mm MIG/MAG welding wire
» E-Cu electrolytic copper construction provides high electrical and thermal conductivity for efficient current transfer
» Precisely sized wire bore helps guide the welding wire consistently towards the weld pool
» M6 threaded connection provides straightforward installation into compatible contact tip holders
» 28mm standard-length design is widely used across compatible Binzel-style MIG/MAG torch systems
» Suitable for common mild steel and stainless steel welding wires
» Compatible with a range of MB, ABIMIG and specialist Abicor Binzel torch configurations when fitted with the appropriate M6 tip holder
» Suitable for general fabrication, workshop, maintenance and production welding applications
» Supplied individually for convenient replacement of worn contact tips
Technical Specifications
» Brand: Abicor Binzel
» Part Number: 140.0242
» Product Type: MIG/MAG Contact Tip
» Duty Type: Standard Duty
» Wire Diameter: 1.0mm
» Imperial Wire Size: Approximately 0.040"
» Thread Size: M6
» Overall Length: 28mm
» Body Diameter: 8mm
» Material: E-Cu Electrolytic Copper
» Compatible Wire Types: Mild Steel And Stainless Steel
» Compatible Torch Series: MB 24KD / MB 25 / MB EVO PRO 25 / MB GRIP 25 / MB 36
» Compatible ABIMIG Series: ABIMIG 255 / ABIMIG W 340 / ABIMIG GRIP LW
» Additional Compatible Series: RAB GRIP 25 / RAB GRIP 255 / xFUME PRO 24
» Application: MIG/MAG Welding Wire Guidance And Current Transfer
» Pack Quantity: 1
