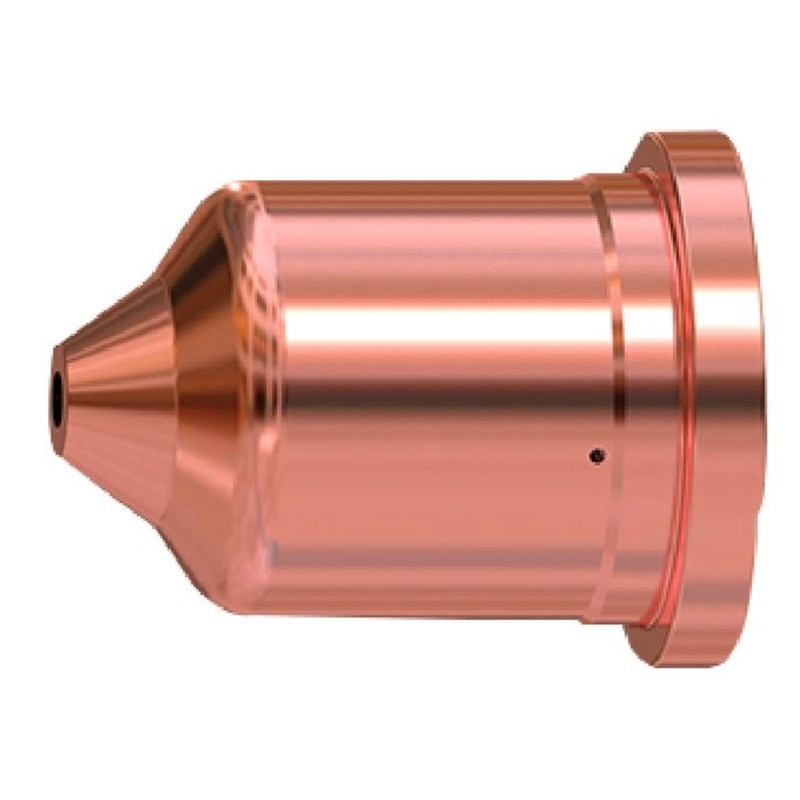

Plasma Nozzle 220819 Duramax 65A
SKU:
10060784
The Hypertherm 220819 65 Amp Plasma Cutting Nozzle is a genuine torch consumable designed for standard cutting with compatible Duramax plasma torches. Operating from 45A to 65A, its precision-machined copper alloy construction concentrates the plasma arc for accurate handheld drag-cutting and mechanised cutting applications.
Features & Benefits
» Genuine Hypertherm consumable engineered for standard 65A plasma cutting applications
» Precision nozzle geometry constricts and concentrates the plasma arc for fast, accurate metal separation
» Suitable for operating currents from 45A to 65A
» Supports handheld drag-cutting and mechanised CNC cutting applications
» Compatible with Duramax handheld, machine and robotic torch configurations
» Precision-machined copper alloy construction provides excellent thermal and electrical performance
» Designed primarily for the Powermax65 and compatible with suitable Powermax85 and Powermax105 systems operating at 65A
» Supports recommended mild steel production cutting up to 20mm under specified operating conditions
» Supports mild steel severance cutting up to 32mm and mechanised piercing up to 16mm under suitable conditions
» Designed for use with clean, dry and oil-free compressed air or nitrogen
Technical Specifications
» Brand: Hypertherm
» Manufacturer Part Number: 220819
» Product Type: Plasma Cutting Nozzle
» Rated Current: 65A
» Operating Current Range: 45A To 65A
» Material: Copper Alloy
» Compatible Torch Family: Duramax
» Torch Configurations: Handheld, Machine And Robotic
» Compatible Systems: Powermax65, Powermax85 And Powermax105
» Cutting Processes: Drag Cutting And Mechanised Cutting
» Recommended Mild Steel Cut Capacity: 20mm
» Maximum Mild Steel Severance Capacity: 32mm
» Maximum Mechanised Piercing Capacity: 16mm
» Compatible Gas: Clean, Dry, Oil-Free Air Or Nitrogen
» Compatible Electrode: 220842
» Compatible Swirl Ring: 220857
» Compatible Retaining Cap: 220854
» Compatible Handheld Drag Shield: 220818
» Compatible Machine Shield: 220817
» Compatible Ohmic Retaining Cap: 220953
