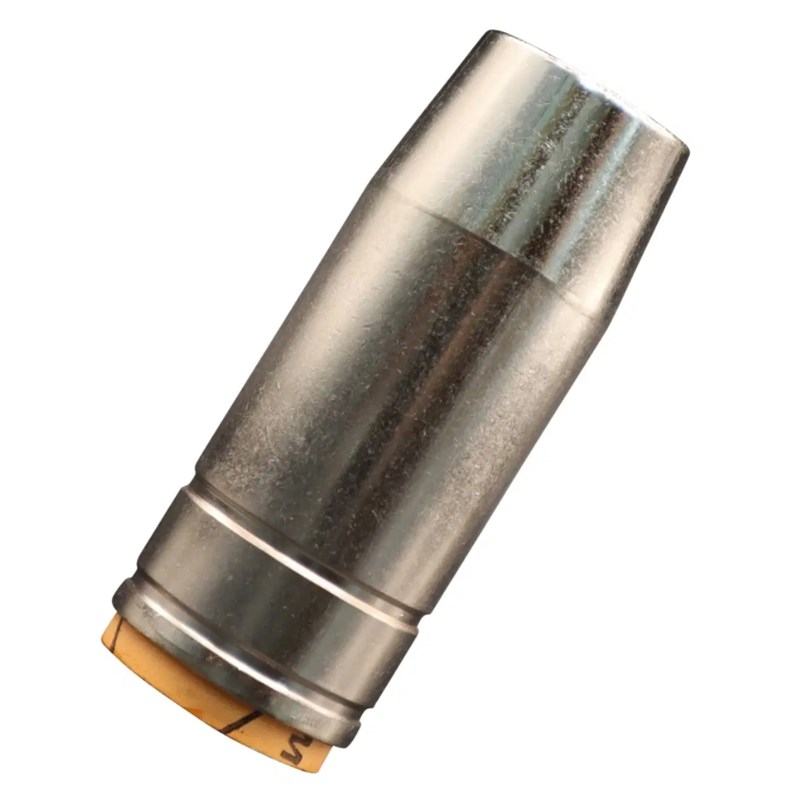

Shroud Conical MB25AK 1450076 Binzel
SKU:
10053594
The Abicor Binzel Conical Gas Nozzle/Shroud for MB25AK is a genuine replacement MIG/MAG torch consumable designed to provide consistent shielding gas coverage over the weld pool. Its tapered conical profile and 15mm discharge bore provide concentrated gas delivery while maintaining good visibility and access around the weld joint. Manufactured from a high-conductivity copper alloy for effective heat dissipation and durability, the nozzle features a convenient push-on friction-fit connection.
Features & Benefits
» Genuine Abicor Binzel replacement gas nozzle for compatible MB25-series MIG/MAG welding torches
» Conical profile provides good joint visibility and accessibility during general fabrication work
» 15mm discharge bore concentrates shielding gas effectively around the contact tip and weld pool
» Consistent gas distribution helps protect the molten weld pool against atmospheric contamination and porosity
» High-conductivity copper alloy construction provides effective heat dissipation during extended welding cycles
» Robust construction provides excellent resistance to heat, welding spatter and regular workshop use
» Integrated insulation helps reduce the risk of electrical arcing and flash-over around the torch front end
» Push-on friction-fit connection enables quick installation and replacement during routine maintenance
» Internal tension seat provides secure retention on the compatible torch swan neck
Technical Specifications
» Brand: Abicor Binzel
» Product Type: MIG/MAG Gas Nozzle / Shroud
» Part Number: 145.0076
» Retail Pack Part Number: 145B076
» Nozzle Profile: Conical
» Discharge Bore Diameter: 15mm
» Base Connection Bore Diameter: 22mm
» Overall Length: 57mm
» Fitting Type: Push-On / Friction Fit
» Material: High-Conductivity Copper Alloy
» Compatible Torch Series: MB25 / MB25AK / MB EVO 25 / MB GRIP 25 AK
» Welding Process: MIG/MAG
