Clamp 2 Bolt 155-175 -675
SKU:
10014129

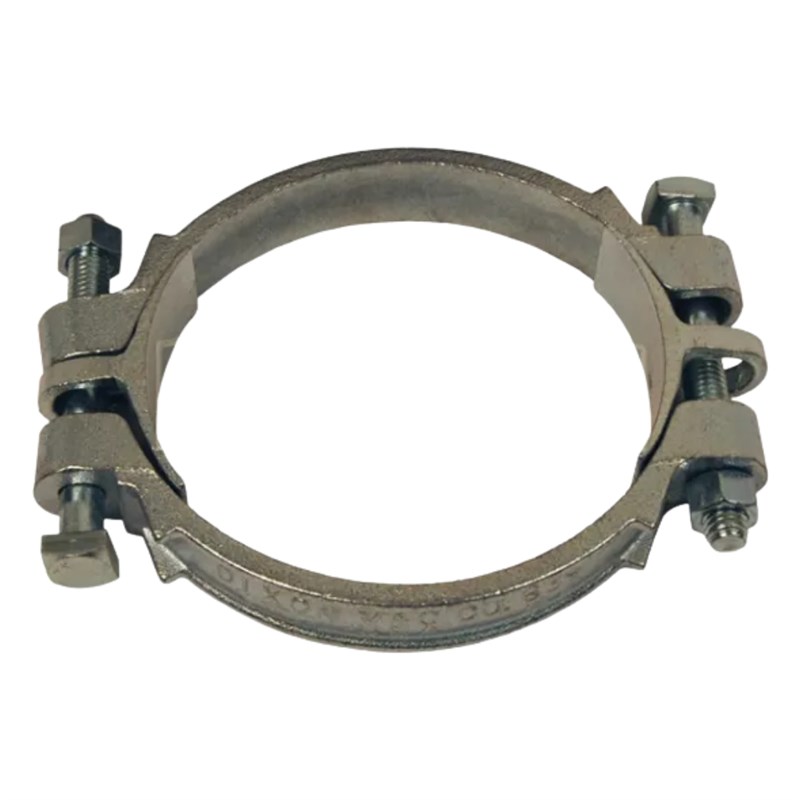

The Dixon Valve & Coupling 675 Double Bolt Clamp with SC12 Saddles is a heavy-duty plated iron hose clamp designed to provide a secure and reliable connection on large industrial hose assemblies. Featuring a two-bolt design with reinforced saddles, it delivers even clamping force for demanding applications including water transfer, construction, agriculture and industrial fluid handling.
Back Ordered
Typical Lead Time: 7 Days
Features & Benefits
» Heavy-duty two-bolt clamp for secure hose retention
» Supplied complete with SC12 reinforced saddles
» Manufactured from plated iron for improved corrosion resistance
» Reinforced bolt lugs minimise distortion during tightening
» Dual gripping ridges provide enhanced hose grip
» Suitable for large industrial hose assemblies
» Designed for water transfer, agricultural and industrial applications
» Dry bolt torque specification ensures consistent clamp performance
Technical Specifications
» Brand: Dixon Valve & Coupling
» Part Number: 675
» Saddle Type: SC12
» Product Type: Double Bolt Hose Clamp
» Clamp Configuration: Two-Bolt Heavy-Duty Clamp
» Material: Plated Iron
» Minimum Hose Outside Diameter: 5-60/64" (150.8 mm)
» Maximum Hose Outside Diameter: 6-32/64" (165.1 mm)
» Minimum Clamp Internal Diameter: 5.9375" (150.8 mm)
» Maximum Clamp Internal Diameter: 6.5" (165.1 mm)
» Clamp Thickness: 1-1/8" (28.6 mm)
» Overall Width: 8-1/2" (215.9 mm)
» Recommended Tightening Torque: 60 ft-lb
» Fastener Type: Hex Head Machine Bolts With Heavy Hex Nuts
» Design Features: Dual Gripping Ridges And Reinforced Bolt Lugs
» Bolt Lubrication: Torque Specification Applies To Dry Bolts Only
» Typical Applications: Industrial Hose Assemblies / Water Transfer / Construction / Agriculture / Fluid Handling
