Clamp 2 Bolt 210-225 8" (875)
SKU:
10014132

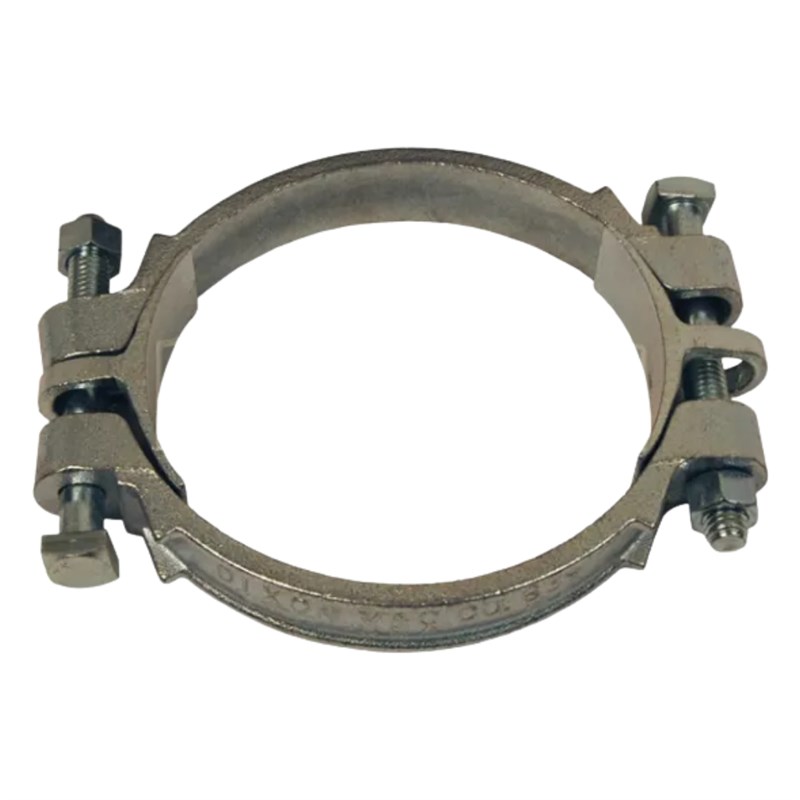

The Dixon Valve & Coupling 875 Double Bolt Clamp with SC16 Saddles is an extra heavy-duty plated iron hose clamp designed to provide maximum clamping force on large industrial hose assemblies. Featuring a robust two-bolt design with reinforced saddles, it delivers secure hose retention for demanding applications including water transfer, mining, construction, agriculture and industrial fluid handling.
Features & Benefits
» Heavy-duty two-bolt clamp for large industrial hose assemblies
» Supplied complete with SC16 reinforced saddles
» Manufactured from plated iron for excellent strength and corrosion resistance
» Reinforced bolt lugs minimise distortion during tightening
» Dual internal gripping ridges provide superior hose retention
» Factory matched MB1060 bolts ensure reliable clamping performance
» Designed for demanding industrial, construction and agricultural applications
» Dry bolt torque specification provides optimum clamp performance
Technical Specifications
» Brand: Dixon Valve & Coupling
» Part Number: 875
» Saddle Type: SC16
» Product Type: Double Bolt Hose Clamp
» Clamp Configuration: Two-Bolt Heavy-Duty Clamp
» Material: Plated Iron
» Unit Weight: 4.6 lbs (2.09 kg)
» Minimum Hose Outside Diameter: 8-16/64" (209.6 mm)
» Maximum Hose Outside Diameter: 8-56/64" (225.4 mm)
» Minimum Clamp Internal Diameter: 8.25" (209.6 mm)
» Maximum Clamp Internal Diameter: 8.875" (225.4 mm)
» Clamp Width: 1-3/8" (34.9 mm)
» Bolt Specification: MB1060
» Recommended Tightening Torque: 125 ft-lb
» Fastener Type: Hex Head Machine Bolts With Heavy Hex Nuts
» Design Features: Dual Internal Gripping Ridges And Reinforced Bolt Lugs
» Bolt Lubrication: Torque Specification Applies To Dry Bolts Only
» Typical Applications: Industrial Hose Assemblies / Water Transfer / Mining / Construction / Agriculture / Fluid Handling
