Adaptor Camlock `A` 3" Female Polyprop
SKU:
10014335

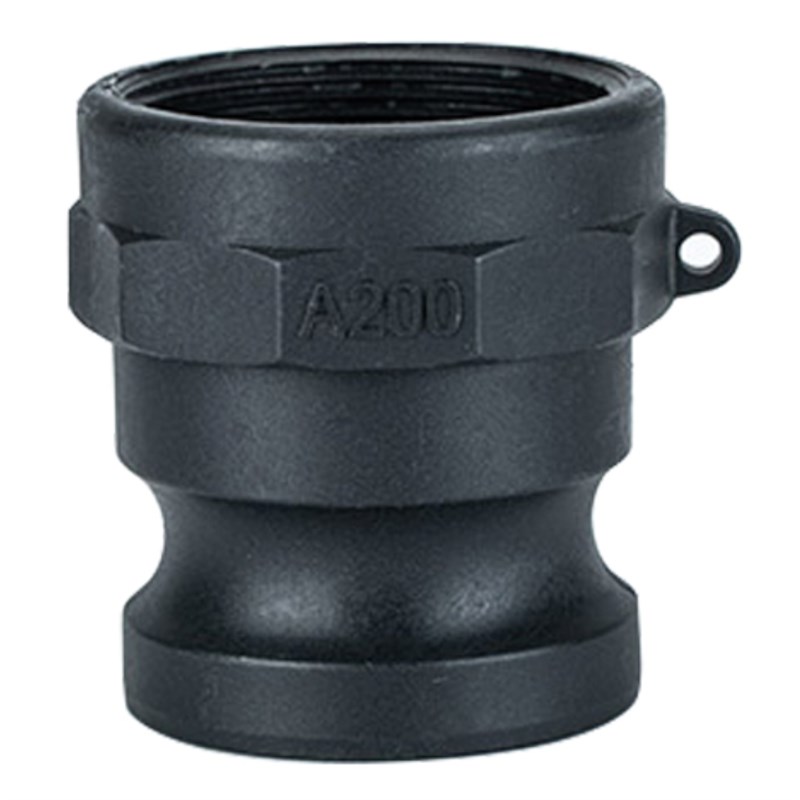

The Quick Connect PARKAIR Industrial Cam & Groove Type A Coupling - Male Adaptor x BSPP Female End Polypropylene | AH-A300-P is a lightweight and durable fluid transfer coupling designed for low-pressure industrial applications. It highlights glass-reinforced polypropylene construction, excellent chemical resistance, and compatibility with standard camlock systems for efficient and reliable connection.
Features & Benefits
» Type A cam and groove coupling with male adaptor and 3in BSPP female thread connection
» Manufactured from glass-reinforced polypropylene for strength and reduced weight
» Excellent resistance to acids, alkalis, aggressive chemicals, and liquid fertilisers
» Lightweight construction reduces strain on hose assemblies and improves handling
» Compatible with standard Mil-Spec A-A-59326 and EN 14420-7 female camlock couplers
» Designed for quick and secure fluid transfer system connection and disconnection
» Maximum working pressure of 7 bar (101.5 PSI) at ambient temperature
» Cost-effective solution where high pressure and extreme temperature resistance are not required
» Suitable for agricultural chemical transfer, industrial process fluids, and de-watering systems
» Ideal for water-based coatings, industrial waste, and non-flammable liquid handling applications
» Not suitable for steam, boiling liquids, compressed air, or gas applications
» Pressure capability reduces as operating temperature increases and should be derated accordingly
Technical Specifications
» Product Name: PARKAIR Industrial Cam & Groove Type A Coupling
» Part Number: AH-A300-P
» Product Type: Type A Male Camlock Adaptor x BSPP Female Thread
» Brand: PARKAIR
» Material: Glass Reinforced Polypropylene
» Body Size: 3 in
» Thread Connection: 3 in BSPP Female Thread
» Maximum Working Pressure: 7 Bar
» Maximum Working Pressure At Ambient Temperature: 101.5 Psi / 20°C
» Standard Compatibility: Mil-Spec A-A-59326 / EN 14420-7
» Chemical Resistance: Resistant To Acids, Alkalis, Chemical Solvents And Agricultural Fertilisers
» Construction Feature: Lightweight Corrosion Resistant Design
» Application: Agricultural Chemical Transfer, Industrial Fluid Handling, Pumping And De-Watering
» Suitable Media: Non-Flammable Chemicals, Process Water And Water Based Coatings
» Usage Restriction: Not Suitable For Compressed Air Or High Pressure Gas
» Temperature Limitation: Pressure Rating Applies At Ambient Temperature Only
