Hose Hydraulic 1.1/4" R2T 125 Bar
SKU:
10012115

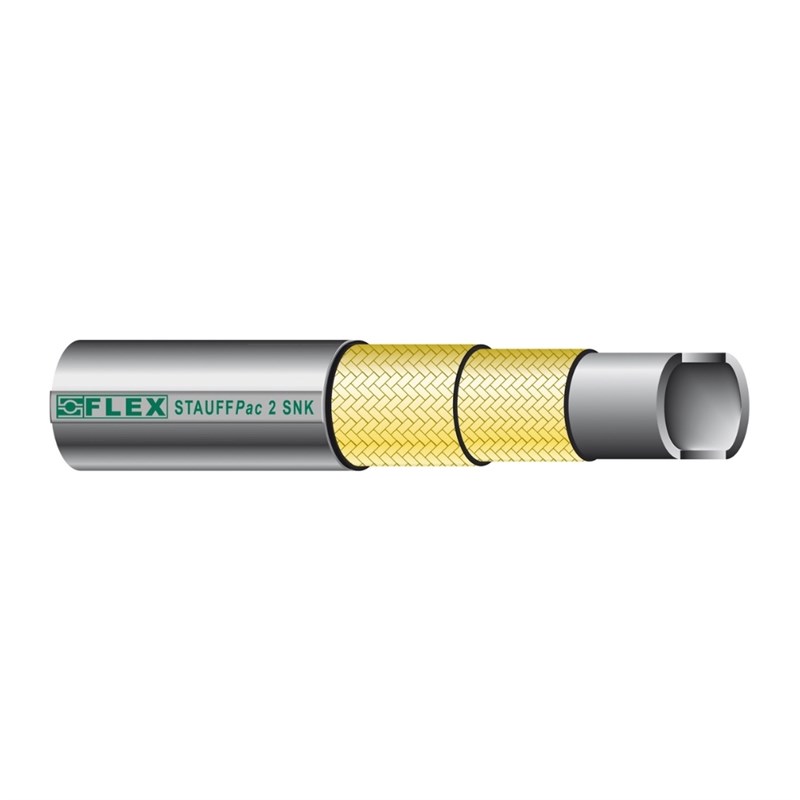

The STAUFF HOS-2SN-31-A-STM Hydraulic Hose is a heavy-duty double-wire braided hydraulic hose designed for high-pressure hydraulic systems and industrial fluid transfer applications. It highlights enhanced pressure capability, oil-resistant construction, and superior resistance to abrasion, ozone, and weathering.
Features & Benefits
» Hydraulic hose manufactured to DIN EN 853 2SN standards
» Dual high-tensile steel braid reinforcement provides enhanced high-pressure performance
» Suitable for demanding hydraulic systems and industrial fluid transfer applications
» Oil-resistant synthetic rubber inner tube ensures compatibility with hydraulic oils
» Abrasion-resistant outer cover improves durability in harsh industrial environments
» Ozone and weather-resistant outer layer supports extended outdoor service life
» Maximum operating pressure of 125 bar (1,813 PSI) for high-pressure hydraulic applications
» Suitable for continuous operating temperatures up to +100°C
» Capable of withstanding temporary peak temperatures up to +120°C
» Flexible construction allows easier installation and hose routing
» Suitable for agricultural, construction, industrial, and mobile hydraulic equipment
» Manufactured in the Czech Republic to stringent quality standards
Technical Specifications
» STAUFF Material Number: 2020000319
» Manufacturer Code: HOS-2SN-31-A-STM
» Country Of Origin: Czech Republic
» Standard: DIN EN 853 2SN
» Hose Diameter: 1 1/4 in (DN 31)
» Reinforcement: 2 High Tensile Steel Braids
» Inner Tube Material: Oil Resistant Synthetic Rubber
» Outer Cover Material: Abrasion, Ozone And Weather Resistant Synthetic Rubber
» Maximum Operating Pressure: 125 Bar
» Maximum Operating Pressure: 1,813 Psi
» Minimum Operating Temperature: -40°C
» Maximum Operating Temperature: +100°C Continuous
» Peak Temperature: +120°C Temporary Maximum
