Hose Hydraulic 1.1/4" 4SH 345 Bar
SKU:
10012129

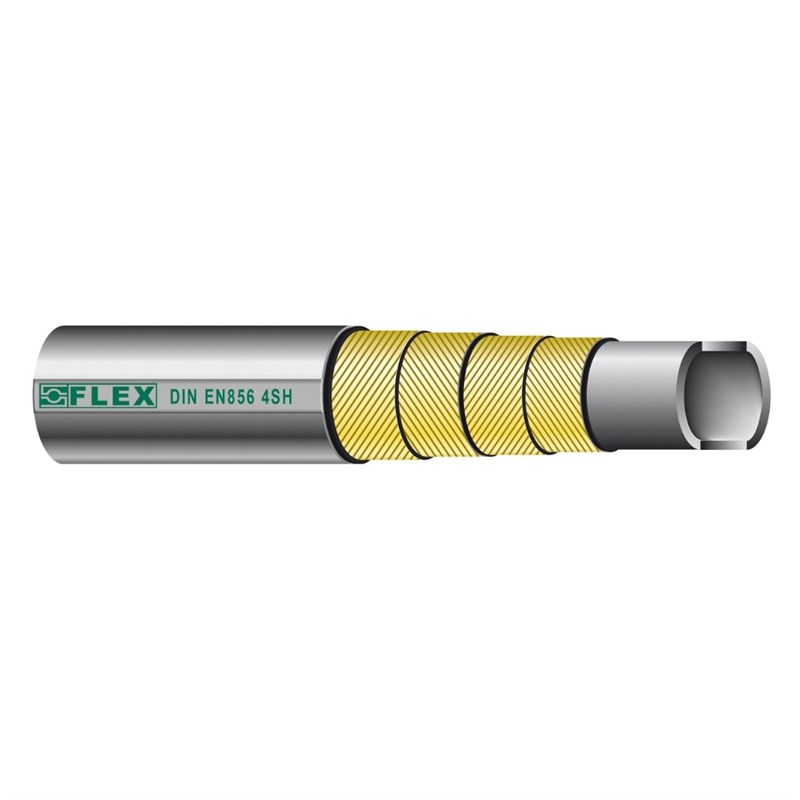

The STAUFF HOS-4SH-31-R-STM Hydraulic Hose is a heavy-duty high-pressure hydraulic hose designed for demanding industrial and mobile hydraulic systems. It highlights four high-tensile steel wire spiral reinforcement layers, exceptional pressure capability, and superior resistance to abrasion, ozone, and weathering.
Features & Benefits
» Heavy-duty hydraulic hose manufactured to DIN EN 856 4SH standards
» Four high-tensile steel wire spiral reinforcement layers provide exceptional pressure resistance
» Designed for demanding hydraulic applications requiring reliable high-pressure fluid transfer
» Oil-resistant synthetic rubber inner tube ensures compatibility with hydraulic oils
» Abrasion-resistant outer cover improves durability in harsh industrial environments
» Ozone and weather-resistant outer layer supports extended service life outdoors
» Maximum operating pressure of 350 bar (5,076 PSI) for high-performance hydraulic systems
» Suitable for continuous operating temperatures up to +100°C
» Capable of withstanding temporary peak temperatures up to +125°C
» Flexible and robust construction supports mobile plant and industrial hydraulic installations
» Suitable for construction, agricultural, mining, and heavy equipment applications
» Manufactured in the Czech Republic to stringent quality standards
Technical Specifications
» STAUFF Material Number: 6100142775
» Manufacturer Code: HOS-4SH-31-R-STM
» Country Of Origin: Czech Republic
» Standard: DIN EN 856 4SH
» Hose Diameter: 1 1/4 in (DN 31)
» Reinforcement: 4 High Tensile Steel Wire Spiral Layers
» Inner Tube Material: Oil Resistant Synthetic Rubber
» Outer Cover Material: Abrasion, Ozone And Weather Resistant Synthetic Rubber
» Maximum Operating Pressure: 350 Bar
» Maximum Operating Pressure: 5,076 Psi
» Minimum Operating Temperature: -40°C
» Maximum Operating Temperature: +100°C Continuous
» Peak Temperature: +125°C Temporary Maximum
