Hose Check Valve 3/8-3/8 L/H DA5003838LH
SKU:
10025201

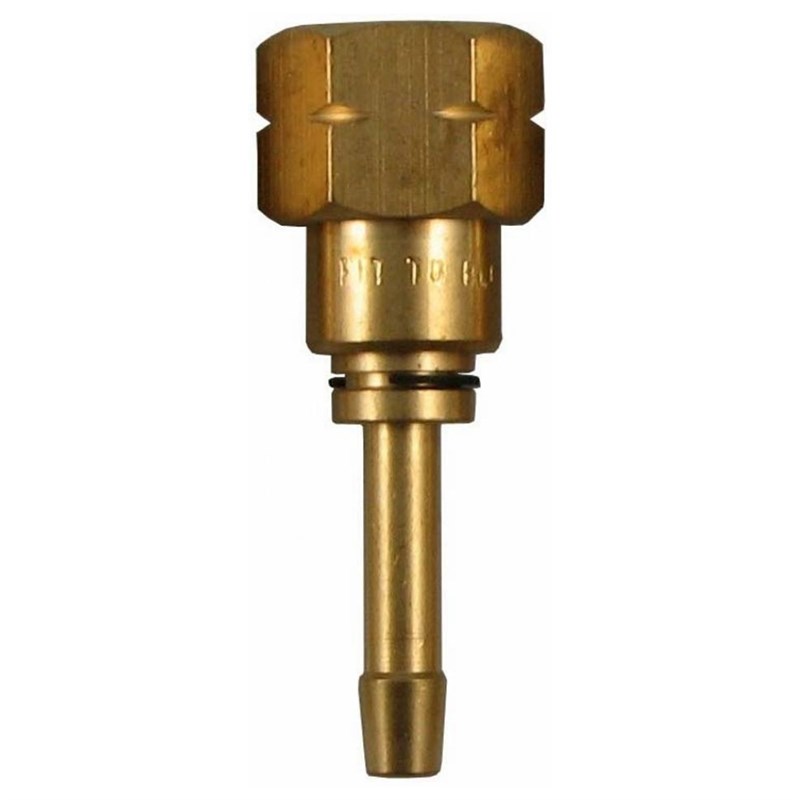

The Weldfast / Weldgas GAS5007 Double Safety Hose Check Valve is a heavy-duty fuel-gas non-return valve designed for installation at the torch end of high-flow oxy-fuel welding and cutting equipment. Featuring a 3/8" BSP female left-hand connection and 3/8" (10mm) hose tail, it helps prevent reverse fuel-gas flow and the potentially hazardous mixing of gases within the hose system.
Features & Benefits
» Heavy-duty double safety hose check valve designed for fuel-gas lines on oxy-fuel welding and cutting equipment
» Non-return valve mechanism helps prevent reverse fuel-gas flow from the torch into the supply hose
» Spring-loaded internal valve automatically closes against reverse pressure to reduce the risk of gas back-feeding
» Left-hand threaded connection identifies the component for use on the fuel-gas side of the system
» 3/8" BSP female connection provides compatibility with appropriate torch-end fittings
» 3/8" (10mm) serrated hose tail is designed for high-flow systems using compatible 10mm internal diameter gas hose
» Solid brass body provides a durable construction for demanding workshop and site environments
» Suitable for compatible fuel gases including acetylene, propane and LPG
» Directional design allows fuel gas to flow towards the torch while restricting flow in the opposite direction
» Larger 10mm hose connection makes the valve suitable for heavy-duty, higher-flow oxy-fuel installations
» Suitable for oxy-fuel welding, brazing, heating and cutting equipment using compatible fuel-gas hose systems
Technical Specifications
» Brand: Weldfast / Weldgas
» Product Code: GAS5007
» Manufacturer Part Code: DA5003838LH / DA5003838LHFT
» Product Type: Double Safety Hose Check Valve
» Valve Type: Non-Return Valve
» Gas Type: Fuel Gas
» Compatible Gases: Acetylene / Propane / LPG
» Thread Connection: 3/8" BSP Female
» Thread Direction: Left-Hand
» Hose Tail Size: 3/8" (10mm)
» Compatible Hose Internal Diameter: 10mm
» Body Material: Brass
» Valve Mechanism: Spring-Loaded Non-Return
» Installation Position: Torch End
» Flow Direction: Towards Torch
» Function: Prevention Of Reverse Fuel-Gas Flow
» Application: Heavy-Duty Oxy-Fuel Welding, Cutting, Brazing And Heating Equipment
