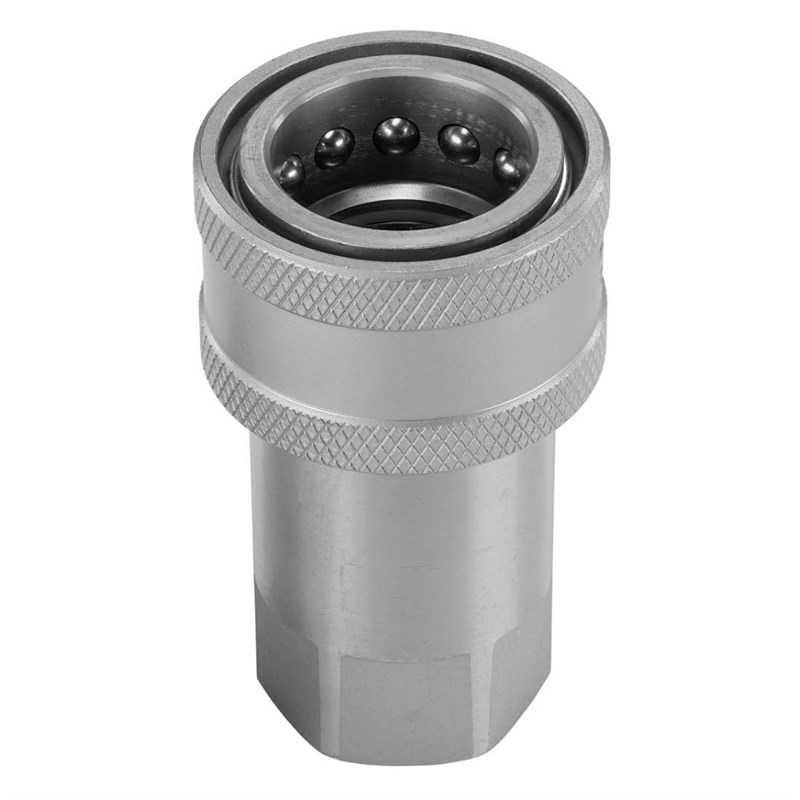

Coupling 1/2" BSPF Steel Quick Release
SKU:
10014612
The STAUFF Series IA ISO 7241-1 Series A Female Quick Release Coupling is a high-performance hydraulic coupling designed to provide fast, secure connection and disconnection of hydraulic lines without the need for tools. Featuring a 1/2" BSPP female thread, poppet valve design and zinc-nickel plated carbon steel construction, it delivers reliable sealing and excellent corrosion resistance for industrial, agricultural and mobile hydraulic applications.
Features & Benefits
» Manufactured to ISO 7241-1 Series A for global interchangeability
» Push-to-connect operation allows fast and simple hose connection
» Integral poppet valve minimises fluid loss during disconnection
» 1/2" BSPP female thread for straightforward installation into hydraulic systems
» High-strength carbon steel body provides excellent durability
» Zinc-nickel plated finish offers outstanding corrosion resistance
» NBR seal with PTFE back-up ring provides dependable leak-free performance
» Suitable for hydraulic equipment, agricultural machinery, construction plant and industrial applications
Technical Specifications
» Brand: STAUFF
» Part Number: 6100201504
» Model: QRC-IA-12-F-G08-BT-W3AA
» Product Type: Female Quick Release Coupling
» Coupling Series: IA
» Standard: ISO 7241-1 Series A
» Coupling Style: Push-To-Connect Female Socket
» Valve Type: Poppet Valve
» Nominal Body Size: DN 12.5 (Size 12)
» Port Connection: G 1/2" BSPP Female
» Thread Standard: BSP Parallel (ISO 228-1)
» Body Material: Carbon Steel
» Surface Finish: Zinc-Nickel Plated
» Seal Material: Nitrile Rubber (NBR)
» Back-Up Ring Material: PTFE
» Corrosion Resistance: High Corrosion Resistant Zinc-Nickel Coating
» Suitable Media: Hydraulic Oil And Mineral Oil-Based Fluids
» Typical Applications: Hydraulic Systems / Agricultural Machinery / Construction Equipment / Industrial Fluid Power Systems
