Adaptor Camlock `E` 3" Tail Polyprop
SKU:
10014361

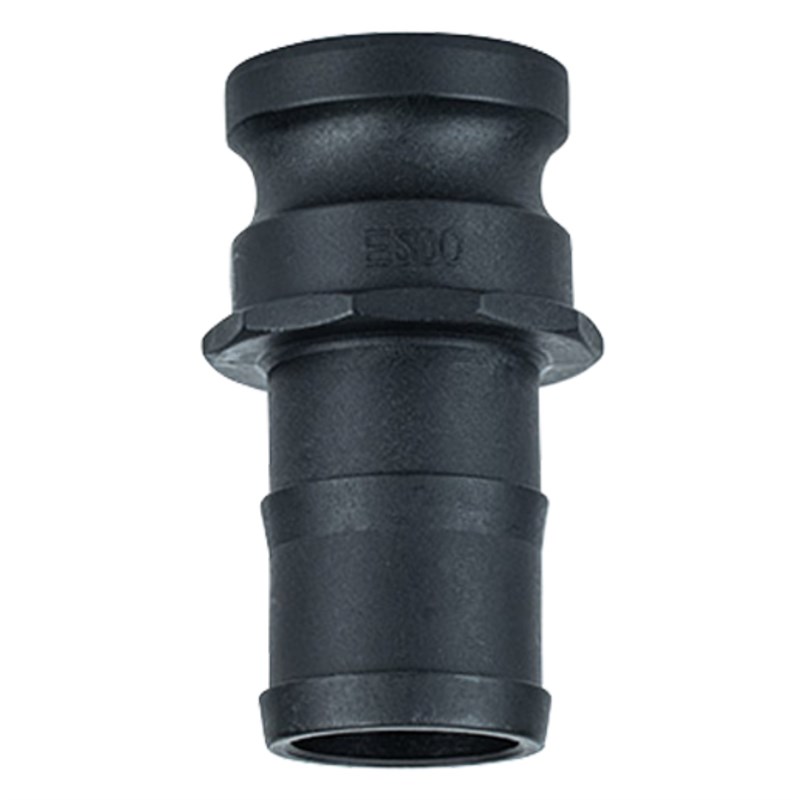

The PARKAIR Polypropylene Cam & Groove Hose Shank | Type E Male Adaptor x Hose Tail | AH-E300-P is a lightweight and durable quick-connect coupling designed for low-pressure fluid transfer through flexible hose systems. It highlights glass-reinforced polypropylene construction, excellent chemical resistance, and a multi-barbed hose tail for secure hose retention.
Features & Benefits
» Type E cam and groove coupling with male adaptor and integrated hose tail connection
» Manufactured from glass-reinforced polypropylene for improved strength and reduced weight
» 3in hose tail designed to fit 3in (75mm nominal) internal diameter flexible hoses
» Multi-barbed shank profile improves hose grip and retention when correctly clamped
» Resistant to corrosion, oxidation, weathering, and aggressive chemical environments
» Lightweight design reduces hose-end sagging and minimises strain on mating couplings
» Compatible with standard Mil-Spec A-A-59326 and EN 14420-7 female camlock couplers
» Maximum working pressure of 7 bar (101.5 PSI) at ambient temperature
» Suitable for chemical transfer, agricultural spraying, pumping systems, and industrial washdown applications
» Ideal for handling industrial fluids, fertilisers, process water, and non-flammable liquid media
» Hose tail must be secured using suitable hose clips or heavy-duty clamps during installation
» Not suitable for compressed air, steam, or high-pressure gas applications
Technical Specifications
» Product Name: PARKAIR Polypropylene Cam & Groove Hose Shank
» Part Number: AH-E300-P
» Product Type: Type E Male Camlock Adapter x Hose Tail
» Brand: PARKAIR
» Material: Glass Reinforced Polypropylene
» Camlock Size: 3 in
» Hose Tail Size: 3 in
» Hose Compatibility: 75 mm Internal Diameter Flexible Hose
» Maximum Working Pressure: 7 Bar
» Maximum Working Pressure At Ambient Temperature: 101.5 Psi / 20°C
» Standard Compatibility: Mil-Spec A-A-59326 / EN 14420-7
» Hose Retention Feature: Multi Barbed Hose Shank Design
» Corrosion Resistance: Resistant To Oxidation, Rust And Aggressive Chemical Environments
» Construction Feature: Lightweight Design To Reduce Hose End Strain
» Chemical Resistance: Suitable For Acids, Alkalis And Industrial Chemicals
» Application: Chemical Transfer, Agricultural Spraying, Pumping Systems And Industrial Washdown
» Installation Requirement: Secure Using Hose Clips Or Heavy Duty Bolt Clamps
» Suitable Media: Liquids And Low Pressure Fluid Transfer
» Usage Restriction: Not Suitable For Compressed Air, Steam Or High Pressure Gas
