Ferrule 1.1/2" R2T
SKU:
10012157

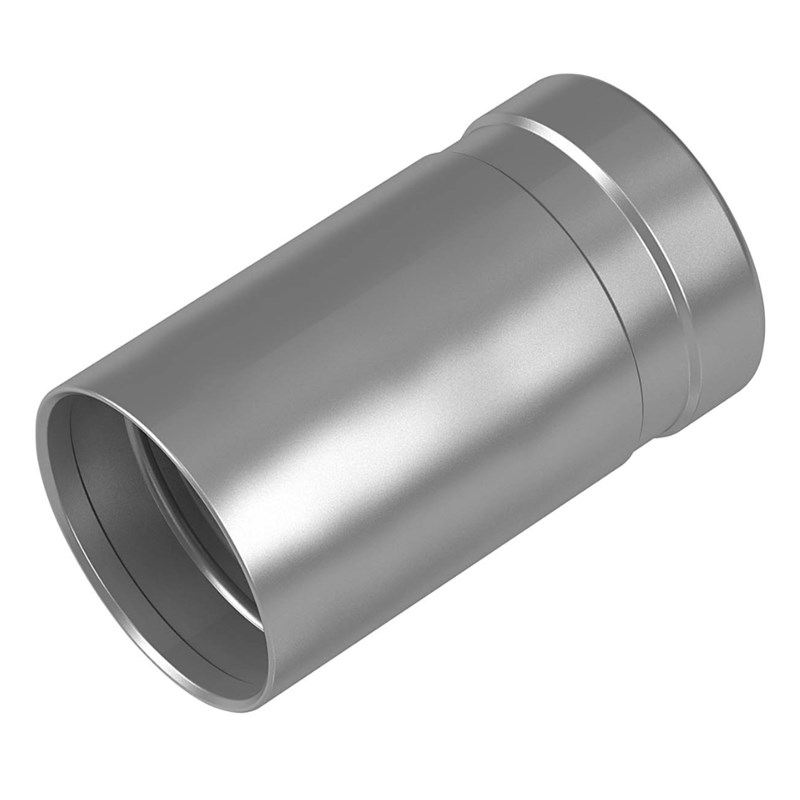

The STAUFF ECOVOS FI-BXT224 Non-Skive Swage Ferrule is a high-performance hydraulic hose ferrule designed for use with 1.1/2" (DN38 / Dash 24) two-wire braided hydraulic hoses. Manufactured from premium carbon steel with STAUFF's advanced zinc-nickel coating, it provides a secure, leak-free crimp connection without requiring the hose cover to be removed. Engineered for demanding hydraulic systems, it delivers dependable performance across industrial, agricultural, construction and mobile equipment applications.
Features & Benefits
» High-pressure non-skive swage ferrule for hydraulic hose assemblies
» Designed specifically for 1.1/2" (DN38 / Dash 24) two-wire braided hydraulic hoses
» Eliminates the need to remove the hose outer cover before crimping
» Manufactured from premium carbon steel for exceptional strength and durability
» STAUFF zinc-nickel plating provides outstanding corrosion resistance
» Compatible with EN 853 2SN, SAE 100 R2T and SAE 100 R2AT hydraulic hoses
» Precision-machined internal profile delivers a secure mechanical grip during crimping
» Designed for use with STAUFF ECOVOS hose inserts and approved crimp specifications
» Dynamic impulse tested for demanding hydraulic applications
» Ideal for industrial, agricultural, construction and mobile hydraulic equipment
Technical Specifications
» Brand: STAUFF
» Product Series: ECOVOS
» Part Number: FI-BXT224
» Alternative Part Number: BXT224
» Product Type: Non-Skive Swage Ferrule
» Hose Size: 1.1/2" (DN38 / Dash 24)
» Hose Compatibility: EN 853 2SN / SAE 100 R2T / SAE 100 R2AT
» Hose Construction: Two-Wire Steel Braided Hydraulic Hose
» Skive Requirement: Non-Skive
» Material: Premium Carbon Steel
» Finish: STAUFF Zinc-Nickel Plating
» Corrosion Resistance: Greater Than 720 Hours Salt Spray (DIN EN ISO 9227)
» Overall Length: 66.5mm
» Outside Diameter: 63.0mm
» Maximum Working Pressure: Up To 90 Bar (Dependent On Hose Rating)
» Safety Factor: 4:1 Minimum (Burst To Working Pressure)
» Assembly Method: Hydraulic Swaging
» Compatible Inserts: STAUFF ECOVOS Hose Inserts
» Compatible Crimp Equipment: STAUFF Approved Swaging Machines And Die Sets
