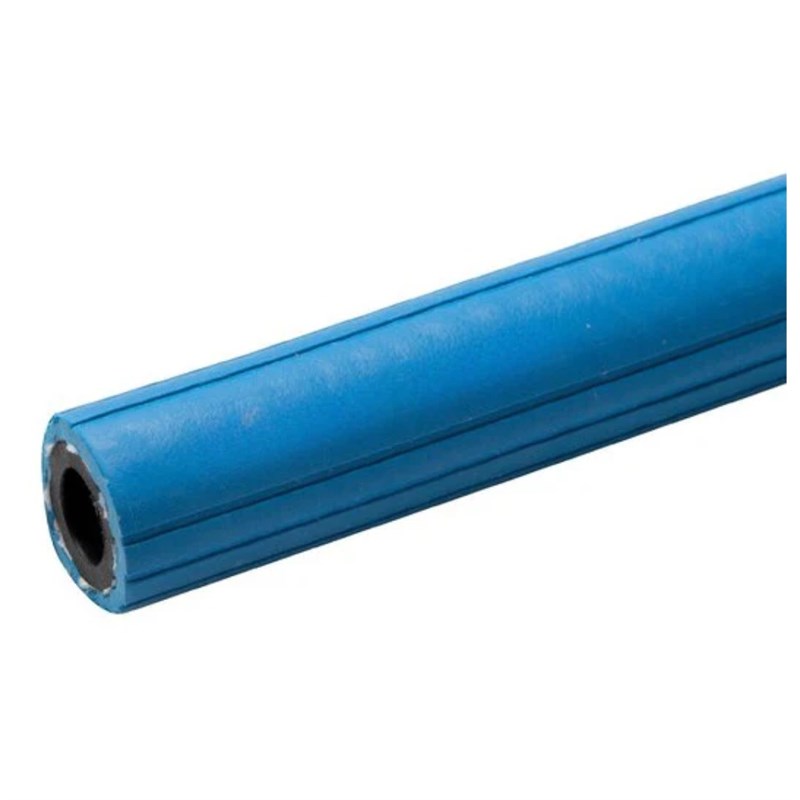

Hose Blue Oxygen 13mm ID (Sold Per Mtr)
SKU:
10061080
The Ralco HA811 Blue Oxygen Hose is a heavy-duty industrial gas welding hose designed for high-flow oxygen transfer in cutting, scrap processing, and thermic lancing applications. It highlights robust mandrel-built construction, compliance with BS EN ISO 3821, and excellent resistance to abrasion, ozone, UV exposure, and workshop environments.
Features & Benefits
» Heavy-duty oxygen hose engineered for industrial gas welding and cutting applications
» Large 13mm bore provides high-volume oxygen flow for demanding operations
» Mandrel-built construction delivers excellent durability and dimensional stability
» Smooth SBR inner tube is chemically inert to oxygen and free from lubricants or silicones
» High-tensile textile reinforcement improves pressure retention and crush resistance
» Blue EPDM/SBR outer cover resists abrasion, ozone, UV exposure, and weathering
» Suitable for scrap-metal processing, flame cutting, and thermic lancing operations
» Certified to BS EN ISO 3821 for industrial gas welding equipment
» Continuous operating pressure of 20 Bar with a 3:1 safety factor
» Flexible construction maintains performance across a wide temperature range
» Resistant to workshop wear, dragging, and incidental spark exposure
» Designed for professional industrial and fabrication environments
Technical Specifications
» Brand: Ralco
» Part Number: HA811
» Product Type: Oxygen Welding Hose
» Internal Diameter: 13mm
» Nominal Bore Size: 1/2in
» Internal Diameter Tolerance: ±0.5mm
» Outside Diameter: 23mm
» Outside Diameter Tolerance: ±0.75mm
» Working Pressure: 20 Bar / 300 PSI
» Minimum Burst Pressure: 60 Bar / 900 PSI
» Safety Factor: 3:1
» Minimum Bend Radius: 130mm
» Inner Tube Material: Black Smooth SBR Synthetic Rubber
» Reinforcement: High-Tensile Synthetic Textile Yarn
» Outer Cover Material: Blue EPDM / SBR Rubber Blend
» Cover Properties: Abrasion, Ozone, UV, Weather, And Spark Resistant
» Temperature Range: -20°C To +70°C
» Standard Compliance: BS EN ISO 3821
» Suitable Media: Oxygen
» Application: Industrial Gas Welding, Cutting, Scrap Processing, And Thermic Lancing
