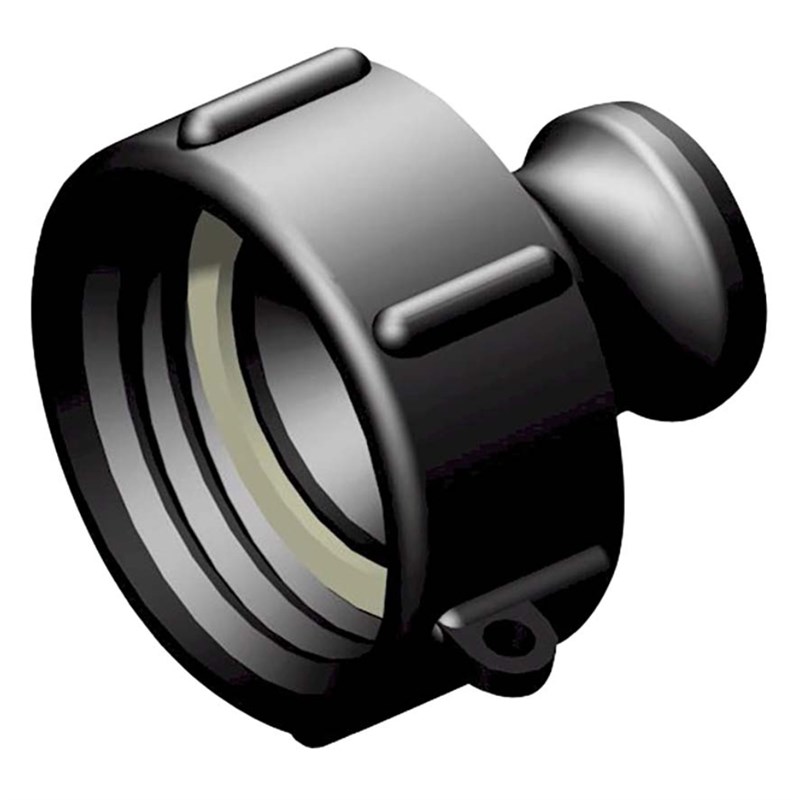

Adaptor Camlock `A` S60 x 6 Fem Polyprop
SKU:
10014376
The PARKAIR Industrial IBC Adaptor Part A Male Camlock x S60X6 Female Buttress Thread IBC-CMA/20UD/027 is a heavy-duty tank connection adaptor designed for fast and reliable liquid transfer from standard IBC containers. It highlights glass-reinforced polypropylene construction, universal S60X6 compatibility, and leak-resistant performance for industrial and agricultural applications.
Features & Benefits
» Heavy-duty Part A male camlock adaptor designed for quick connection to standard hose systems
» Fitted with a 2in S60X6 female buttress thread for direct installation onto compatible IBC discharge valves
» Manufactured from 20% glass-reinforced polypropylene for enhanced strength and impact resistance
» Compatible with standard European and UK IBC systems including Schutz, Mauser, and Sotralentz containers
» Supplied complete with internal LDPE or EPDM sealing washer for reliable leak prevention
» Eliminates the need for thread tape when sealing against coarse plastic tank outlets
» Provides a fast conversion from IBC outlet threads to standard quick-connect camlock systems
» Suitable for transferring chemical products, process liquids, fertilisers, herbicides, and water-based solutions
» Ideal for industrial processing plants, agricultural liquid handling, and wash-down installations
» Operating temperature range from -20°C to +70°C with reduced structural performance under prolonged heat exposure
» Designed exclusively for liquid transfer and low-pressure pumping applications
» Not suitable for compressed air, compressed gas, or continuous high-temperature fluid service
Technical Specifications
» Product Name: PARKAIR Industrial IBC Adaptor
» Part Number: IBC-CMA/20UD/027
» Alternative Part Number: CMA/20UD
» Product Type: Part A Male Camlock IBC Adaptor
» Coupling Connection Type: Part A Male Camlock (Cam & Groove) Adapter
» Adapter Size: 2 in
» Tank Thread Connection: S60X6 Female Buttress Thread
» Thread Profile Dimensions: 60 mm Diameter x 6 mm Pitch
» Material: 20% Glass Reinforced Polypropylene
» Gasket Material: LDPE Or EPDM Flat Washer
» Operating Temperature Range: -20°C To +70°C
» Construction Feature: Heavy Duty Impact Resistant Design
» Chemical Resistance: Suitable For Industrial Chemicals And Agricultural Liquids
» Compatibility: Fits Standard European And UK IBC Bottom Valves
» IBC Compatibility: Suitable For Schutz, Mauser And Sotralentz Containers
» Seal Type: Internal Seating Washer For Leak Proof Connection
» Installation Feature: No Thread Tape Required
» Application: Bulk Chemical Decanting, Agricultural Liquid Transfer And Industrial Fluid Handling
» Suitable Media: Liquids, Low Pressure Transfer And Gravity Feed Systems
» Usage Restriction: Not Suitable For Compressed Air Or Gas Applications
» Temperature Limitation: Continuous High Temperature Use Not Recommended
