Clip Jubilee 11 - 16mm MOO
SKU:
10005197

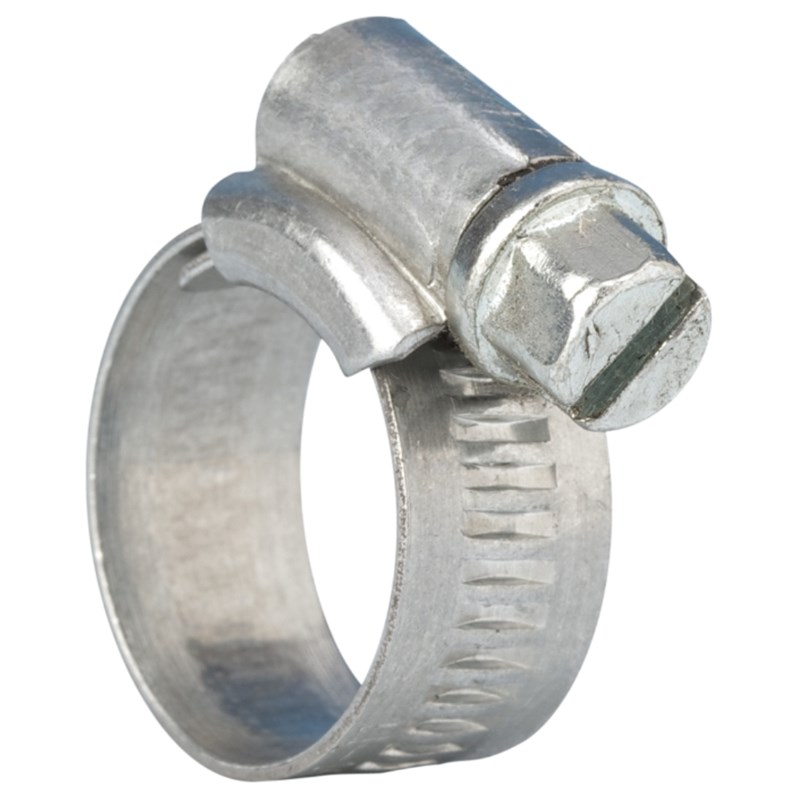

The JCS Hi-Grip Worm Drive Hose Clip M00 is a premium-quality hose clamp designed to provide secure, even clamping on hoses with outside diameters from 11mm to 16mm. Featuring a smooth inner band with rolled edges and a precision worm drive mechanism, it delivers reliable sealing performance whilst protecting soft rubber and silicone hoses from damage.
Features & Benefits
» Suitable for hose outside diameters from 11mm to 16mm
» Premium JCS Hi-Grip worm drive design
» Smooth inner band protects hoses from damage
» Cold-formed thread profile provides high clamping efficiency
» Fully rolled band edges reduce the risk of hose cutting
» 7mm hex head with slotted drive for easy installation
» Suitable for automotive, industrial, agricultural and marine applications
» Available in zinc plated, A2 stainless steel and A4 stainless steel versions
Technical Specifications
» Brand: JCS Hi-Torque Ltd
» Product Range: Hi-Grip
» Product Type: Worm Drive Hose Clip
» Size: M00
» Clamping Range: 11mm – 16mm
» Jubilee Equivalent Size: M00
» Band Width: 9mm
» Band Thickness: 0.7mm
» Screw Head: 7mm Hex Head With Slotted Drive
» Thread Design: Cold-Pressed Non-Perforated Band
» Band Edge Design: Fully Rolled Smooth Edges
» Recommended Tightening Torque: 3.4Nm
» Maximum Tightening Torque: 4.5Nm
» Maximum Pressure Rating: Up To 14 Bar (203 PSI)
» Material Options: Zinc Plated Steel / A2 (304) Stainless Steel / A4 (316) Stainless Steel
» Typical Applications: Automotive / Industrial / Marine / Agricultural / General Hose Connections
