Ceramic Cup 3/8 10N48 Binzel
SKU:
10024989

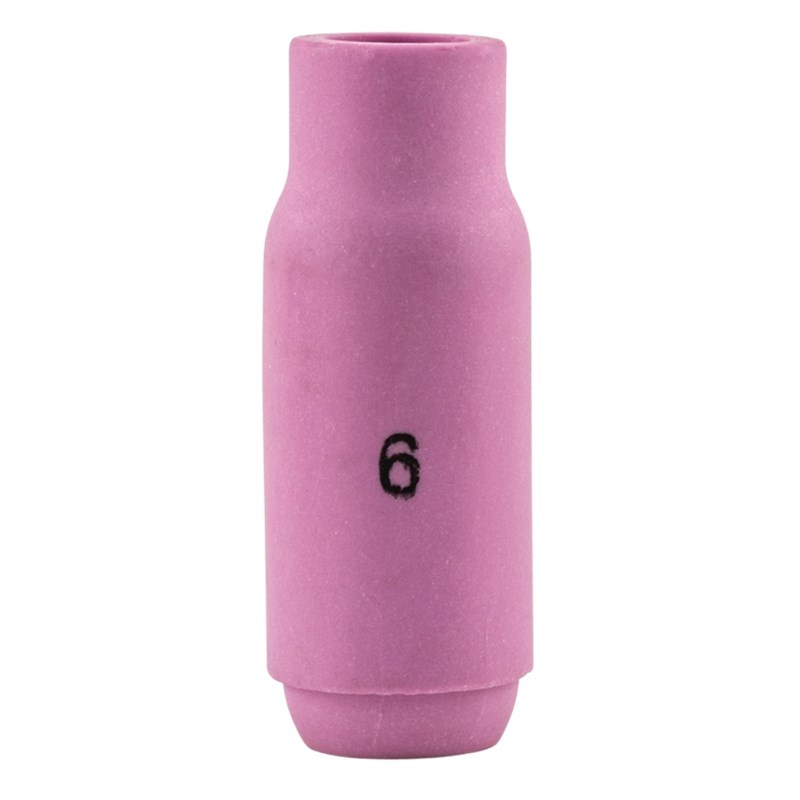

The Abicor Binzel 10N48 Standard Alumina Ceramic Gas Cup Size 6 is a premium TIG welding consumable designed for 17, 18, and 26 Series TIG torches. Manufactured from high-grade alumina ceramic, it delivers a controlled flow of shielding gas over the weld pool, helping to minimise atmospheric contamination while providing excellent heat resistance and weld quality.
Features & Benefits
» Genuine Abicor Binzel Size 6 alumina ceramic gas cup for professional TIG welding applications
» Directs a smooth, consistent flow of shielding gas to protect the weld pool from atmospheric contamination
» Manufactured from premium alumina ceramic for exceptional heat and thermal shock resistance
» Resistant to welding spatter and electrical arcing for long service life
» Compatible with 17, 18, and 26 Series TIG welding torches
» Suitable for both air-cooled and water-cooled TIG torch systems
» Fits standard 10N series collet bodies for straightforward installation
» Precision manufactured to provide reliable gas coverage and improved weld quality
» Ideal for general fabrication, maintenance, repair, and precision TIG welding applications
» Designed for use with standard collet bodies and not suitable for gas lens consumables
Technical Specifications
» Brand: Abicor Binzel
» Product Name: Standard Alumina Ceramic Gas Cup
» Manufacturer Part Number: 10N48
» Industry Reference: 10N48
» Product Type: TIG Ceramic Gas Cup
» Size: No.6
» Orifice Diameter: 3/8" (9.5-9.6mm)
» Material: Alumina Ceramic (Al₂O₃)
» Compatible Torch Series: 17, 18 And 26 Series
» Compatible Torch Models: WP-17, WP-18, WP-26, SR17, SR18, SR26, Flex, Valve And Flex-Valve Variants
» Cooling Compatibility: Air-Cooled And Water-Cooled
» Compatible Collet Bodies: 10N28, 10N29, 10N30, 10N31, 10N32 And 406488
» Gas Lens Compatibility: No
» Thread Size: 7/16-16 UNS
» Overall Length: 47mm
» Base Inner Diameter: Approximately 11mm
» Heat Resistance: High Temperature And Thermal Shock Resistant
» Approximate Weight: 0.01kg
