Clip Jubilee 11 - 16mm MOO Stainless
SKU:
10005219

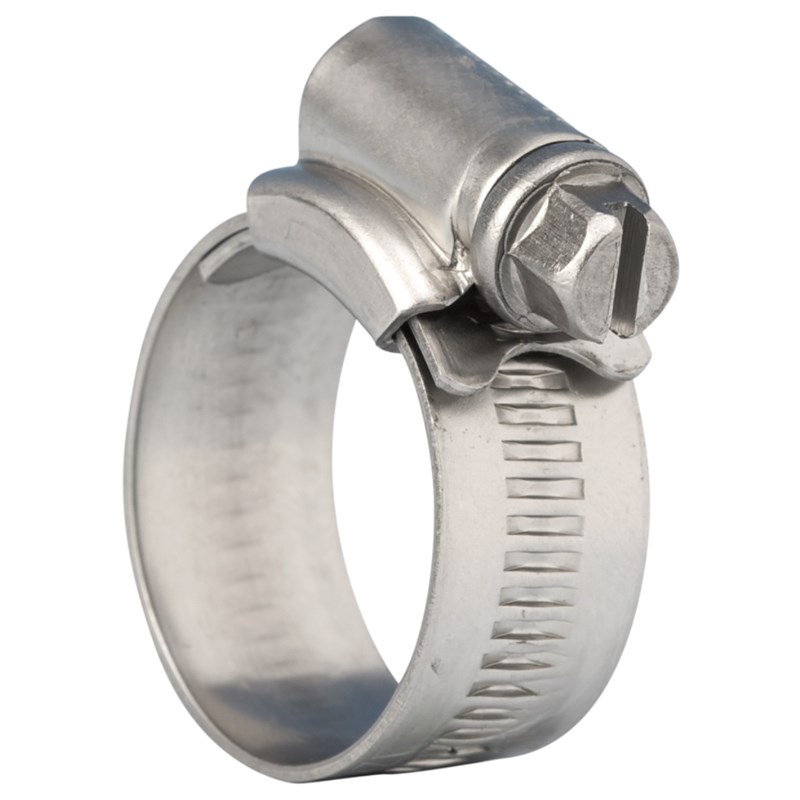

The JCS Hi-Grip Stainless Steel Worm Drive Hose Clip Size M00 is a premium-quality stainless steel hose clamp designed to provide secure, even clamping on hoses with outside diameters from 11mm to 16mm. Manufactured entirely from stainless steel, it features a smooth inner band with rolled edges and a precision worm drive mechanism, delivering reliable sealing performance whilst protecting rubber and silicone hoses from damage in demanding environments.
Features & Benefits
» Suitable for hose outside diameters from 11mm to 16mm
» Premium JCS Hi-Grip stainless steel worm drive design
» Smooth inner band protects hoses from damage
» Cold-pressed thread profile provides high clamping efficiency
» Fully rolled band edges reduce the risk of hose cutting
» 7mm hex head with slotted drive for easy installation
» Manufactured in the UK to exceed BS5315 requirements
» Suitable for marine, food processing, industrial and corrosive environments
» Available in A2 (304) and A4 (316) stainless steel grades
Technical Specifications
» Brand: JCS Hi-Torque Ltd
» Product Range: Hi-Grip Stainless
» Product Type: Stainless Steel Worm Drive Hose Clip
» Size: 16
» Jubilee Equivalent Size: M00
» Clamping Range: 11mm – 16mm
» Band Width: 9mm
» Band Thickness: 0.7mm
» Screw Head: 7mm Hex Head With Slotted Drive
» Thread Design: Cold-Pressed Non-Perforated Band
» Band Edge Design: Fully Rolled Smooth Edges
» Recommended Tightening Torque: 3.0Nm
» Material Options: A2 (304) Stainless Steel / A4 (316) Stainless Steel
» Standards: BS5315
» Approvals: BSI Kitemark / NATO Approved / Lloyd's Register Type Approval (A2 Variant)
» Typical Applications: Marine / Food Processing / Chemical Processing / Industrial / General Hose Connections
