Clip Jubilee 13 - 20mm OO Stainless
SKU:
10005220

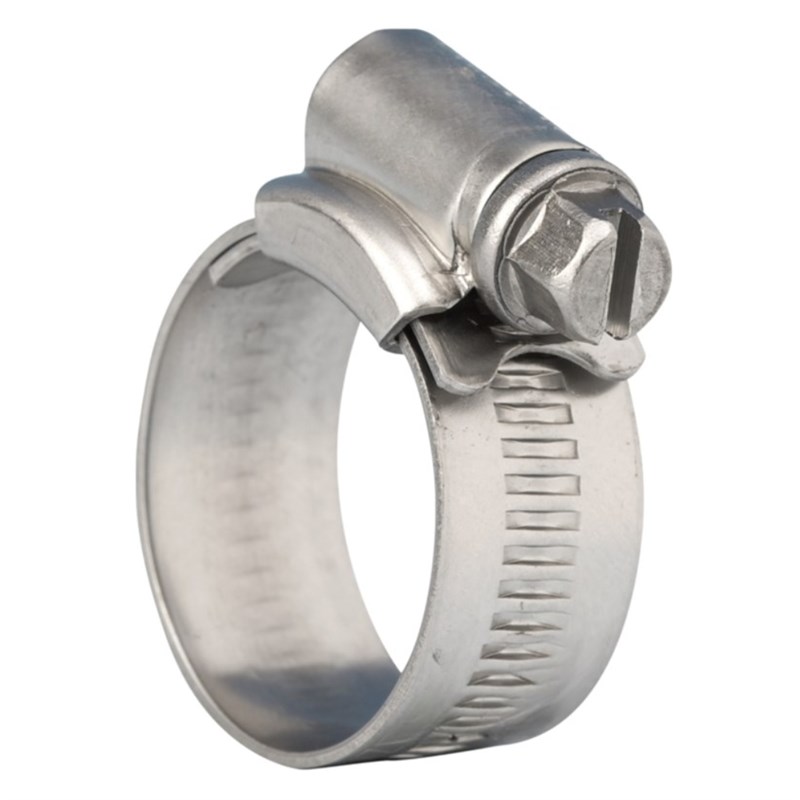

The JCS Hi-Torque HGS20RP Stainless Steel Hose Jubilee Clip is a premium-quality worm drive clip designed for secure and reliable hose fastening in demanding environments. It highlights full 18/8 marine-grade stainless steel construction, compliance with rigorous international standards, and outstanding corrosion resistance, making it ideal for industrial, marine, and automotive applications.
Features & Benefits
» High-performance worm drive hose clip designed for both general-purpose and heavy-duty applications
» Manufactured to exceed BS5315 requirements for dependable clamping performance
» BSI Kitemark and NATO approved for verified quality and reliability
» Exceeds relevant DIN and SAE operational standards
» Manufactured entirely from 18/8 (A2) marine-grade stainless steel for superior corrosion resistance
» Lloyd’s Register approved for use in saltwater and aggressive environments
» Provides outstanding sealing performance, high clamping force, and consistent torque characteristics
» Trusted industry-standard solution for industrial, marine, and automotive applications
Technical Specifications
» Material: Stainless 304 (BS304 - EN 1.4301 / 1.4576)
» Size: 13–20 mm
» Housing Length: 7 mm
» Housing Width: 14 mm
» Housing Height: 10 mm
» Screw Diameter: 12 mm
» Band Width: 9 mm
» Band Thickness: 0.7 mm
» Across Flats: 7 mm
» Recommended Torque Setting: 3.0 Nm / 26 lb-in
