Collet Body Standard 1/16 10N31 Binzel
SKU:
10024994

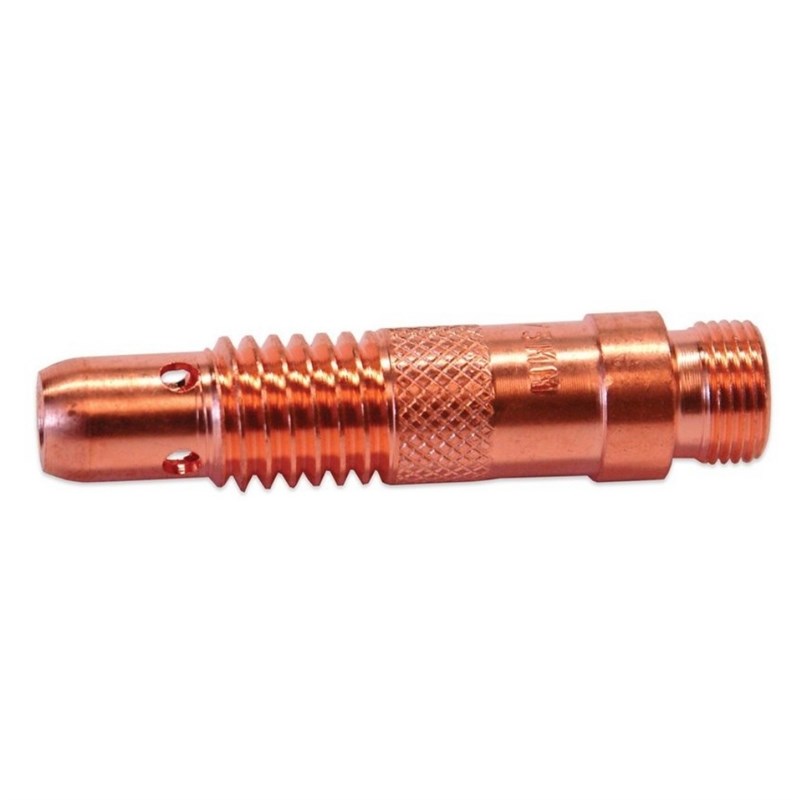

The Abicor Binzel 10N31 Standard TIG Collet Body 1.6mm is a premium replacement consumable designed for 17, 18, and 26 Series TIG welding torches. It securely retains 1.6mm tungsten electrodes while directing shielding gas efficiently into the ceramic nozzle, ensuring stable arc performance and consistent, high-quality welds.
Features & Benefits
» Genuine Abicor Binzel standard collet body for professional TIG welding applications
» Designed to securely clamp 1.6mm (1/16") tungsten electrodes for accurate positioning
» Integrated radial gas ports provide smooth, consistent shielding gas distribution
» Manufactured from highly conductive copper alloy for excellent electrical conductivity and heat dissipation
» Compatible with 17, 18, and 26 Series TIG welding torches
» Suitable for both air-cooled and water-cooled TIG torch systems
» Precision machined for reliable fitment and long service life
» Compatible with standard 10N series ceramic gas cups and 10N23 collets
» Ideal for fabrication, maintenance, repair, and precision TIG welding applications
» Designed for standard TIG consumable systems and not suitable for gas lens configurations
Technical Specifications
» Brand: Abicor Binzel
» Product Name: Standard TIG Collet Body
» Manufacturer Part Number: 10N31
» Alternative Part Number: 701.0109
» Industry Reference: 10N31
» Product Type: TIG Collet Body
» Electrode Size: 1.6mm (1/16")
» Compatible Torch Series: 17, 18 And 26 Series
» Compatible Torch Models: WP-17, WP-18, WP-26, SR17, SR18, SR26, Flex, Valve And Flex-Valve Variants
» Cooling Compatibility: Air-Cooled And Water-Cooled
» Compatible Collet: 10N23
» Compatible Ceramic Cups: 10N50, 10N49, 10N48, 10N47 And 10N46
» Gas Lens Compatibility: No
» Material: Tellurium Copper / Brass Alloy
» Gas Port Design: Radial Gas Ports
» Internal Bore: 1.6mm
» Rear Thread: 3/8" x 32 UNF
» Front Thread: 7/16" x 16 UNS
» Overall Length: 47mm
» Approximate Weight: 0.012kg
